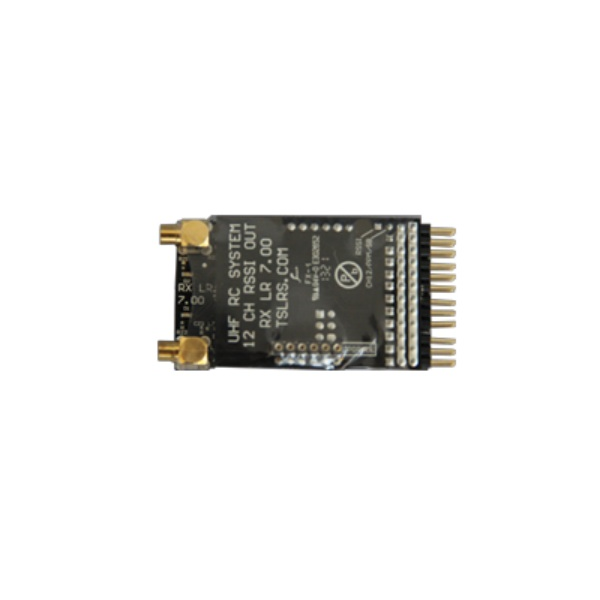

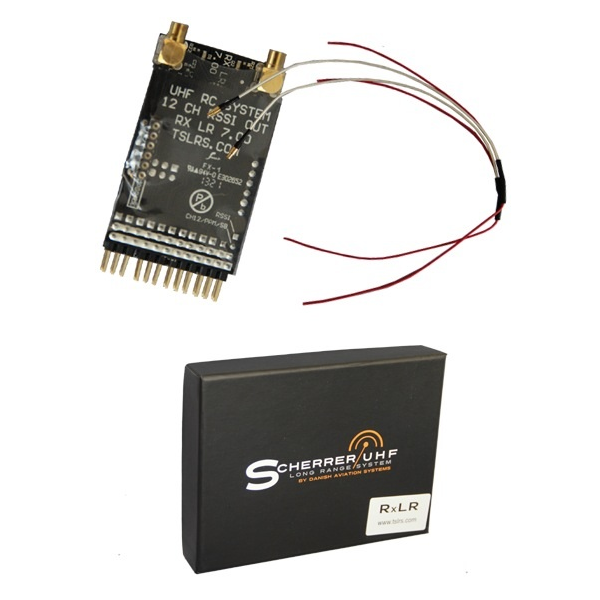

Rx700LR módulo receptor

Quick Overview


More details

116,90 €

Rx700LR is the latest version of RX TSLRS comes with a set of great new feature as:

Updated system diversity
System update RSSI
Puerto external firmware update
Completely new software
Selectable PPM / PWM ( S -Bus planned to come soon ) during boot
It also has sequential failures , which allows you to store pattern failsafe 3 interactions when the fail safe is activated.
Through the port can access TSLRS firmware debug tools for visualizing security numbers , blocked channels , diversity operation , and more ( TSLRS USB programmer needed ) .

12 channels servo

Output PPM (also called sum signal )

Switchable output PWM or PPM

0.5 A 3, 3V min to mix the RSSI output

Supply voltage 4-6 volts

Gram weight 20

The receiver is 34 x 55mm .

Current supply only 5V 134mA RX

Change Diversity dual antenna system prevents auto cancel or drop outs

LED indicators for the selected antenna

MCX connectors for antenna inputs

Cable antenna mounted directly on the rx .

System frequency hopping broadband

Use the band 433-440 MHz ISM license free

User Upgradeable Firmware

support TSLRS

Support for the administration of TSLRS , debugging analyze frequencies , failsafes , diversity

Wide temperature range -40 to user C + 70 C

Optimized input filter so it can co-exist with strong 2.4Ghz on board video transmitters .
