Recepctor RMILEC TS-4047

Quick Overview

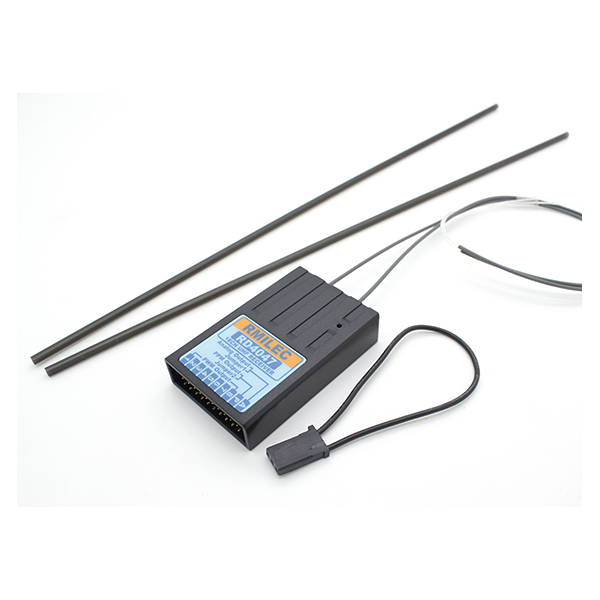

The RMILEC RD4047P 10CH UHF receiver offers the ultimate in range for your FPV model. It is designed for use with the RMILEC TS4047 transmitte module.

More details

81,31 €

SCA-TS-4047

RD4047P Receiver Specifications:
Frequency Range: 400MHz to 470MHz
Sensitivity :
-112 DBM @0.1EBR(40Hz Refresh rate)(10Kbps low rate )
-111 DBM @0.1EBR(50Hz Refresh rate)
-110 DBM @0.1EBR(66Hz Refresh rate) (15Kbps high rate)
-108 DBM @0.1EBR(90Hz Refresh rate)
-104 DBM @0.1EBR(125Hz Refresh rate)
-104 DBM @0.1EBR(166Hz Refresh rate)
-101 DBM @0.1EBR(250Hz Refresh rate)

F/S turn on condition: >0.99EBR
Antenna gain: 2.15DBM
- Low rate mode
Refresh rate: 40Hz
Hopping rate: 40Hz
Hopping cycle: 13Hz
Recover time: 77mS
- High rate mode
Refresh rate: 66Hz
Hopping rate: 66Hz
Hopping cycle: 22Hz
Recover time: 45mS
Response Time: 4mS to 25mS
PWM Output accuracy: 0.5uS step ERROR<20PPM
PWM Output range: 0.5mS-2.5mS
PWM output cycle: 55Hz @Normal mode / 192Hz @Fast mode
PPM Output accuracy: 0.5uS step ERROR<20PPM
PPM Output range: 0.5mS-2.5mS Each channel
PPM output cycle:
50Hz @ Normal mode & 1mS to 2mS Output
42Hz to 50Hz  @Normal mode & 0.5mS to 2.5mS Output
50Hz to 83Hz  @Fast mode   & 1mS to 2mS Output
42Hz to 125Hz @Fast mode   & 0.5mS to 2.5mS
PPM sync pulse width:
4mS to 16mS  Automatic adjust @Normal mode / 4mS unchanging @Fast mode
RSSI output range: 0-3.3V (RF signal weak <0.8V)
Recommend Supply Voltage: 3.5V to 8.4V
Shutdown voltage: 3V
Damage voltage: >15V
Reverse breakdown voltage: >-15V
Output ports withstand voltage: >12V
Normal Current: <60mA
Operating Temperature: –40 to +80 °C
Low frequency Power supply noise filter: Include
High frequency noise filter: Include
