Rx700NR MK

MK Rx700NR normal range ,
by MultiKopters is designed with the benefit of easy integration of Multicopters ,
bright option for people who do not want to risk being in control and video frequencies / telemetry close to each other .
Uptimized input filter so it can coexist with a strong 2.4 GHz video transmitters table .
Wire antenna mounted directly on the rx .
The pin is normally ppm PPM when < 12ch are used, but if used to 12ch servo signal changes ch12 ,
if you want to use a ppm signal 12ch , 12ch ask the ppm version (just a firmware change / update) PPM out is the same as the sum of the signal and this is offcourse fully compatible with mikrocopter controller card,
RX has it all . Servo Pins explained how to connect this to see it connect well . Sensitivity: - 102dBm Servo pulse output signal : 3.3V positive
specification:
4 servo channel ( ch5 ch6 ch7 ch8 )
Output PPM (also called sum signal )
0.5 A 3, 3V min to mix the RSSI output
Supply voltage 4-10 volts

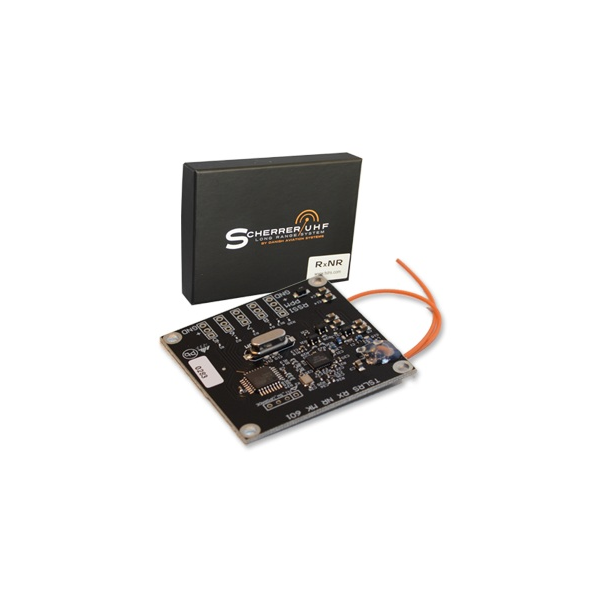

The receiver board is 50 x 50mm and fits perfectly to the controller card Mikro Kopter om .
Weight 10 grams
Source Current 18mA at 5V RX only
Wide temperature range -40 to user C + 70 C
User Upgradeable Firmware
Possible upgrade to MCX connector
System frequency hopping broadband
Use the band 433-440 MHz ISM license free
