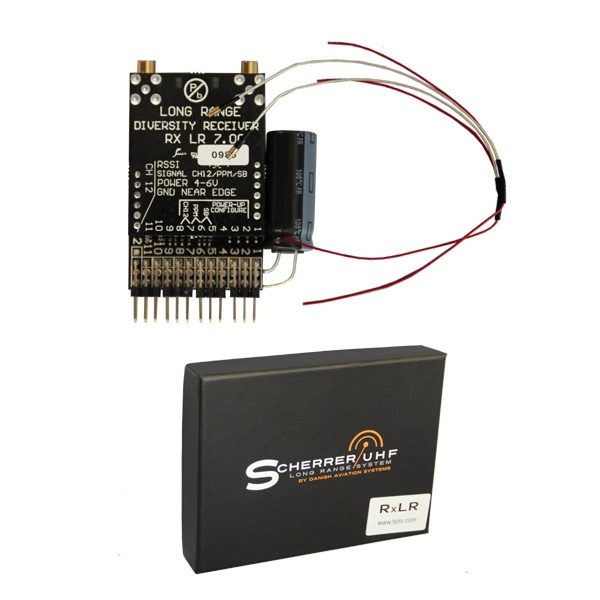

Scherrer Rx700LR+PSU V7 BOOSTED PSU 12CH 433Mhz, Maximize

Scherrer Rx700LR+PSU V7 BOOSTED PSU 12CH 433Mhz,

Quick Overview

152,47 €

Rx700LR + PSU has much greater immune PSU for large digital servos that attracts a lot of energy , but the receiver can restart during the peak power of the servos.

Rx700LR driven is the latest version of the beloved RX TSLRS comes with a set of great new features or updated such as:

Updated system diversity
System update RSSI
Puerto external firmware update
Completely new software
Selectable PPM / PWM ( S -Bus planned to come soon ) during boot
It also has sequential failures , which allows you to store pattern 3 failsafe fail safe interactions when it strikes . Through the port can access TSLRS firmware debug tools for visualizing security numbers , blocked channels , diversity operation , and more ( TSLRS USB programmer needed ) .
LR RX700
Luxury gift box high level of protection
2 antennas

12 channels servo

Output PPM (also called sum signal )

Switchable output PWM or PPM

0.5 A 3, 3V min to mix the RSSI output

Supply voltage 4-6 volts

Gram weight 20

The receiver is 34 x 55mm .

Current supply only 5V 134mA RX

Change Diversity dual antenna system prevents auto cancel or drop outs

LED indicators for the selected antenna

MCX connectors for antenna inputs

Cable antenna mounted directly on the rx .

System frequency hopping broadband

Use the band 433-440 MHz ISM license free

User Upgradeable Firmware

Support Manager TSLRS

Supports TSLRS Manager mode , debug analyze frequencies , failsafes , diversity

Wide temperature range -40 to user C + 70 C

Optimized input filter so it can co-exist with strong 2.4Ghz on board video transmitters .
