Zenmuse Z15-5D para Canon 5D MarkIII. DJI Gimbal Z15 M3

Quick Overview

3 400,00 €

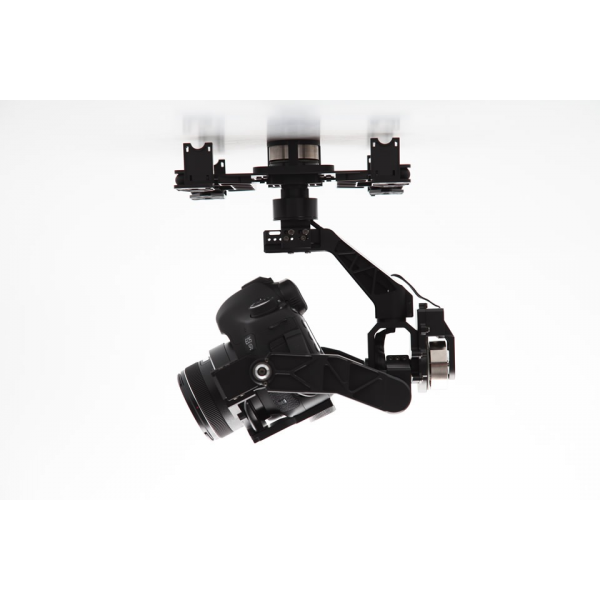

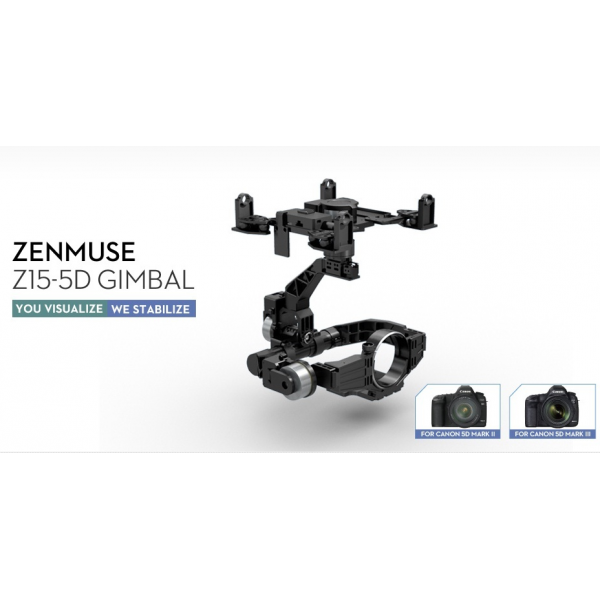

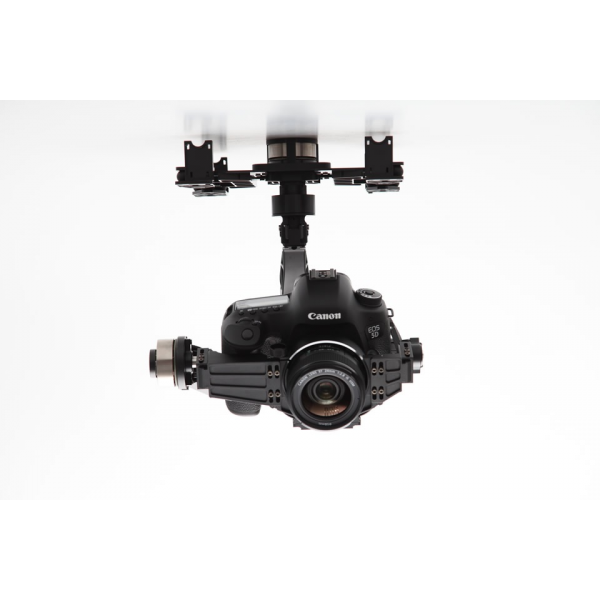

The Gimbal DJI Zenmuse Z15 Canon 5D Mark III , based on the technology of Zenmuse Z15 is another breakthrough in gimbal systems , increases the accuracy by up to 5 times . The control accuracy is ± 0.02 ° angle , so pictures and videos of high quality are achieved . When used with the new S800 EVO , even when the aircraft is flying at high speed, yet puedeestabilizar and control the camera equipment accurately with the highest level of stability. It is definitely the best choice for professional filming , aerial photography for commercial use.
Design unique gimbal for Canon 5D Mark III cameras

To function at its best gimbal , DJI gimbal provides exclusive for the most advanced camera . For example, the Z15- gimbal Zenmuse Canon 5D Mark III Custom to this camera is Canon . It is an ideal camera for photography and video recording and aerial photography , one of the most widely used today.
Multiple control modes

Gimbal Zenmuse The system has three types of control modes , which are deorientación mode control lock, non-blocking mode control orientation and return to midpoint (horizontal mode). The three types of modes can be changed quickly from one mode to meet different needs OtherPain aerial photography . With perfect management mode and easy three stable models Zenmuse gimbal axes , users can take great aerial work.
Three controllable axes

The 3-axis Gimbal Zenmuse system has a creative mechanical design. The control method is simple and easy to use , range of motion of the joystick controls the rotation speed slip rings within relativa.Los avoid complicated wiring . All power cables and signal lines are integrated into the tubes of the gimbal , which means that the shaft can rotate without any limitations. Yaw control could come to ± 360 ° titl control can reach ± 120 ° yel roll control could reach ± 25
IMU module system independent

Due to years of dedication, has achieved for its DJI autopilot systems unaperfecta UAV attitude stabilized algorithm , which , together with the highly precise induction devices can improve the performance of attitude control. Without the requirement of additional facilities and connecting additional cables, but also is easy to assemble and can reach more highlevel stability during flight.
Modulo special servo control

Thanks to the special transmission module DJI custom Gimbal Servo, the Zenmuse deGimbals series has excellent precision control . With high accuracy , low vibration , high torque , this module provides additional carateristicas quality .
HDMI -AV Module

 In order to minimize the payload of the aircraft, the video output module with full functionality such as camera shutter is adapted to convert the HDMI signal to AV cableadolimpio with ensuring the smooth and free movement 3- axis Gimbal .


Built -In Functions

Three Working Modes
· Orientation Control -locked
· Non -locked orientation monitoring
· FPV mode ( Reset)
Built -in independent IMU module
DJI gimbal servo drive module special
HDMI -AV module
Wireless video transmission supported
Camera shutter Control supported
Wide input voltage range supported
Receiver S-Bus/PPM supported
Supported Camera Lens Peripheral Currently Supported Control Power Requirement Input GCU
5D Mark III Canon EF 24mm f/2.8 IS USM ~ 4S LiPo 12S ( 6S Recommend if with S800 ) Four spare receiver channels at Least
Assistant Software System Requirement
Windows XP SP3 , Windows 7 , Windows 8 (32 or 64 bit)
Mechanical & Electrical Characteristics Working Current Operating Temperature Dimensions Weight
Static current: 200mA (@ 25V)
Dynamic current: 400mA (@ 25V)
Locked- rotor current: 4A ( @ 25V) -10 ° C ~ 50 ° C 1.22kg 220mm × 220mm × 190mm
GCU GCU BEC Output Power Wireless Video Transmission GCU GCU Dimensions Weight
10A @ 12V 1A @ 12V 300g 64.2 mm × 34.1mm × 19.5mm
Performance Working Load Weight (Reference Value) Controlled Controlled Rotation Angle Accuracy Maximum Rotation Speed
 Axis ± 0.02 ° Pan: ± 130 ° / s
Tilt axis : ± 130 ° / s
Roll axis : ± 30 ° / s Pan Control axis : ± 360 ° continuous rotation
Control Tilt axis : ± 120 ° continuous rotation
Roll axis Control : ± 25 °
