Zenmuse Z15 para Sony NEX-7 3-axis

Zenmuse Gimbal system is the prestigious DJI , more accurately , faster response and greater stability in the current job market . Incorporates a microcontroller with 3 axis gyro , an IMU and servo motors can convey special for that speed and precision with the Gimbal Zenmuse pelicuas images or obtaining a professional quality footage used by professional video producers . It is the best choice even for border patrol missions , surveillance and military .

FEATURES

- Multiple modes Zenmuse control has three types of control mode , which are:
* Orientation - locked
* Orientation lock -SIN
* Landscape mode . Always returns the midpoint
The three types of control modes can be changed rapidly from one mode to another according to the needs .

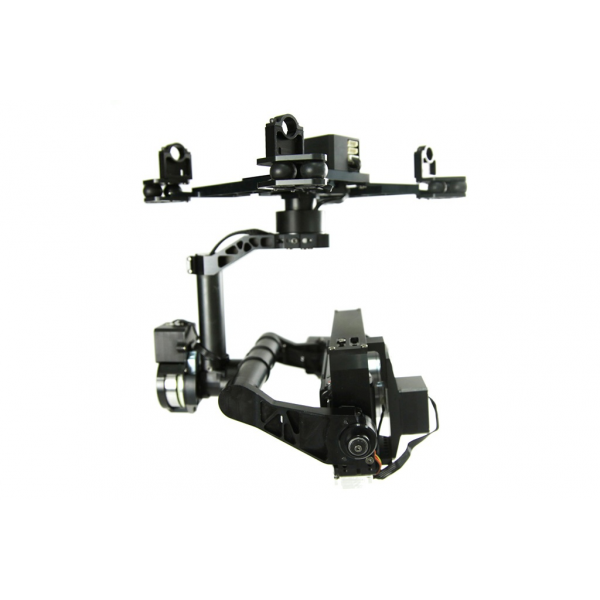

- Unlimited rotation angle in the 3 Axes The Zenmuse 3 axis system has a metal frame with a creative design and functional.The Yaw movement could reach ± 360 ° , the Pitch can reach ± 360 ° and Roll movement could reach ± 40 ° . To get a movement ± 360 ° continuous mechanical rotation , integrated into the rotation axes with contact rings "slip rings" that prevents tangled wires

- Independent Driver Gimbal inertia (IMU ) inertial electronics " IMU " control for the three independent axes , so can be used with any electronic control multicoptero .

- Special servo for DJI Gimbal with high accuracy, low vibration and high torque

- HDMI A / V Module

- S -Bus Receiver

- Rotation speed in the 3-axis controlled range of motion corresponds to the stick shaft rotational speed . Excellent control with high precision on the axis of rotation. Gimbal rotation speed Zenmuse not be affected even if the aircraft is in high speed or a rapid rise

TECHNICAL SPECIFICATIONS

- • Static current: 200mA ( @ 25V) • Dynamic: 400mA (@ 25V) • Locked rotor current : 4A (@ 25V)
- Operating Temperature -10 ° C ~ 50 ° C
- CAN communication interface (compatible with ACE and WKM )
- Weight 880g ( without UBEC , HDMI -AV module)
- Dimensions 200mm × 200mm × 230mm
- Frame Dimensions for the camera ( inside) 115mm × 75mm

- Control accuracy ± 0.05 ° angle
- Maximum speed controlled ± 180 ° / s
- Controlled Rotation:
* Yaw movement range : ± 360 ° continuous rotation
* Pitch Movement: ± 360 ° continuous rotation
* Move Roll: ± 40 ° ( ± 360 ° continuous mechanical rotation )
