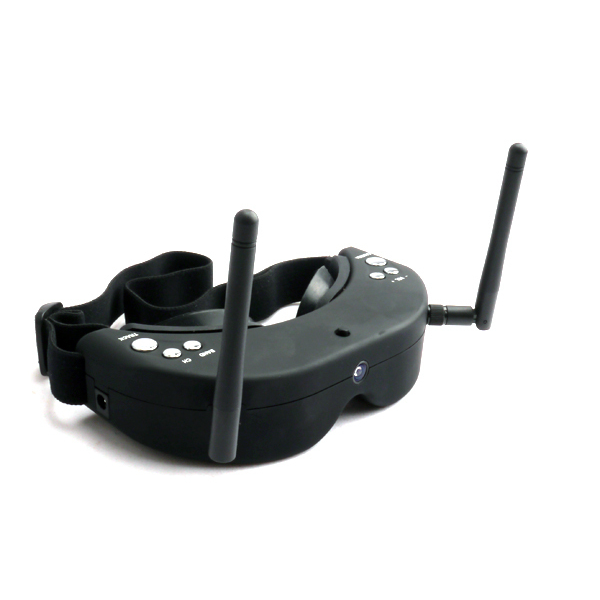

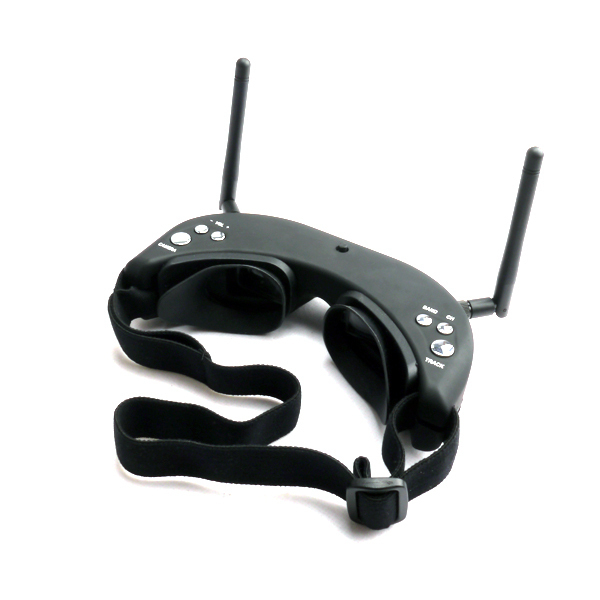

Gafas Fpv 5.8G, 32 canales,diversity

Resolution 854 x 480 ;
Head- tracker , to move cameras with pan and tilt funccion . ( via Futaba radios )
5.8G , 32 channels diversity receivers . compatible with the Immersion fatshark
front camera integrated in to change this entry vidio and you see that te are opposite remove them without glasses , super useful

5.8GHz Diversity

This allows them escoje la mejor glasses signal , we can equip with circular antennas , , , , mas away ...

32 channels of video

input and output video

Head Tracker

it does support funccion to move cameras via radio


Front camera

· Front camera with resolution 680X480 ( VGA )

· It by clicking the camera button , change the video , we see how well it Away Nuestro eyes without glasses remove them , muy util .....

display Setup

Interpupillar distance ( IPD ) adjustable

Brightness / Contrast Adjustable


AV input

· Thegoggles support AV IN . The wireless model will close When the AV IN isconnected to save power .

· TheFront Camera is ok for use under AV IN mode .


AV output


· AVOut diversity is the Video and Audio output

· Earphoneport is audio output for connecting Earphones .

Specifications

Adjustable distance Interpupillary
Built-in Dual Diversity Receiver
Built-in Wide Angle Camera Front View
Built-in Dual - Axis Head Tracking System
High Resolution : 854 * 480 ( WVGA ) , 1230K pixels
High Sensitivity 4 Bands Receiver Channels 32 total
Support Wide Voltage : 7V - 28V ( 2S - 6S ) Lipo Battery
Dimensions : 168 ( L ) X92.5 ( W ) X41 ( H ) mm
Weight : 615g

Compatible transmitters ( the transmitter for RC model , not the video transmitter ) :
FUTABA FF - 7 , FF -8 , FF -9 , T9Z , T12MZ and T14MZ & WFLY transmitters with trainer port .

* Other types transmitter may not supported . JR transmitters are not supported , this is not becaus of the glasses , But becaus of the JR transmitter programmed setting .
