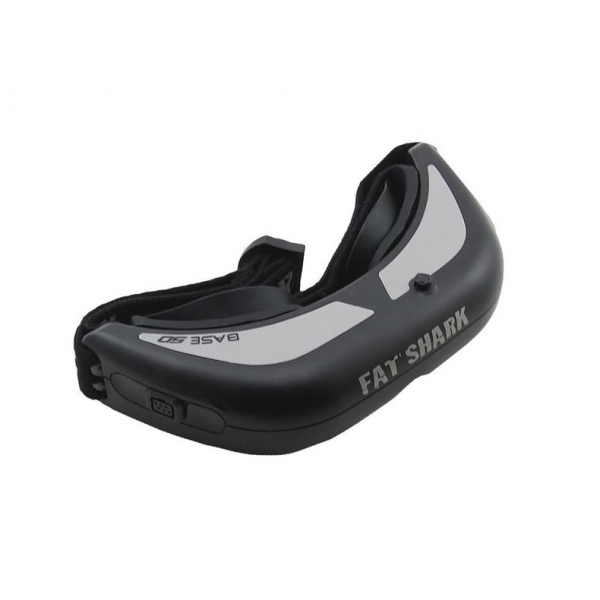

FatShark gafas Base SD

The virtual reality glasses BASIS SD is a wired version for use with your computer glasses FPV ground (any video receiver ) . It has a 640x480 resolution and FOV of 35 º , the biggest market , so tele-immersion is much higher.

They are designed and intended for practicing FPV , so perfectly fit the face and not get any light and the 3 meter cable allows you freedom of movement alrrededor your Base Station FPV

V.2013 SD Base Sunglasses are designed for use with any receiver and any power supply between 6 - 12Volt .

They are sturdy and very comfortable to use, low weight

includes:

- Base SD 2013 (640x480 , 35 º FOV)
- Tough case to carry and protect the lens of the Sun glasses NEW! !
- 3m . Audio and Video Cables
- Manual

Technical Features :

- FOV: 35 °
- Rails for incorporation correptoras set lens wear: (-2 , -4 , -6 dpt Optional. )
- Focal Length: 2 meters from the object
- Interpupillary distance : 60 -70mm ( adjustable)
- Connector ( Futaba type ) with 5 wires to RCA Video / audiol / AudioR input voltage and output voltage . - Resolution: 640x480
- Contrast: if
- Brightness : yes
- Audio: stereo (2 channels)
- Power: 6 - 12Volt
- Consumption: 170 mA
- Low battery indicator : medeante an LED ( with the glasses is set as it is next to a lass lenses)
- Video signal: NTSC / PAL automatic selection
- Audio Output 3.5 mm jack connector
- Weight of the 105gr glasses.
