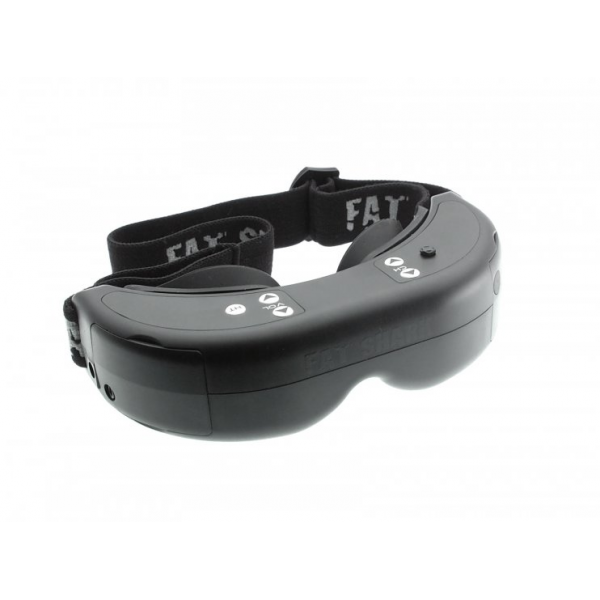

FatShark gafas Dominator V.3

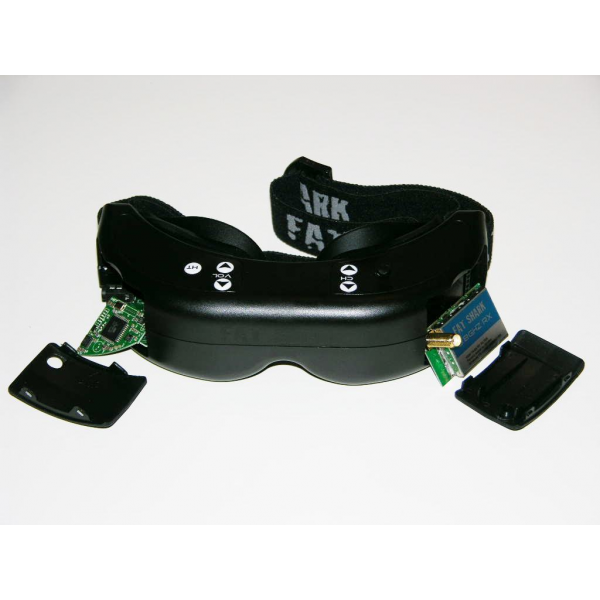

The glasses FatShark Dominator is a versatile and modular design : can be used only for display in wireless mode ( 2.4 or 5.8Ghz ) inserting a (optional ) receptor and even Head tracker built . These modules are very easy to install and intercambialbes in a second. Plug & Play!

The Dominator uses a new image processor and a new optical glass with polarized lenses to provide breathtaking image quality .
You can set the glasses for FPV perfectly fit your application, is a modular system : 2.4GHz Receiver , 5.8 GHz and Head Tracker ( optional module sold separately ) .

ADVANTAGES :

- Ergonomic Rubber independent for each eye.
- 30 ° FOV
- The flat , distortion around the edges
- Slot lenses ( optional)
- Modular design: port to 2.4Ghz or 5.8Ghz Receiver (optional )
- Modular design: Headtracker port (optional )

INCLUDES:

• Glasses Dominator model
• AV Cable 3 m.
• Data cable 1.5 m .
• Power Cable
• Hard Carrying Case
• Manual

Technical Specification:

- FOV: Field of view of 30 degrees diagonal
- Inter Pupillary Distance ( IPD ) : 63.5
- Image size : 45 " @ 7 '
- Rail lens ( lens system : -2 , -4, -6 diopters optional ) .
- Audio: Stereo
- Controls: Channel selection , Contrast, Brightness , volume adjustment , Head Tracker reset / menu control
- Power: 7- 13V ( 2S/3S Lippo )
- Consumption: 200mAh direct mode , 370mA in wireless mode
- Separate Eye Mask , comfortable and reduces light penetration
- Weight: 163g
- Adjustable Clamp Tape glasses
- Display: LCD 2 micro VFA ( ópticade crystal)
- LED Backlight polarized
- Resolution: 922,000 pixels, VGA 640x480
- Interface : A / V , hedtracker port, battery
- Video System : NTSC / PAL Autoselecting
