The FLIR thermal infrared Quark main camera :
The thermal camera smaller , lighter in its class.

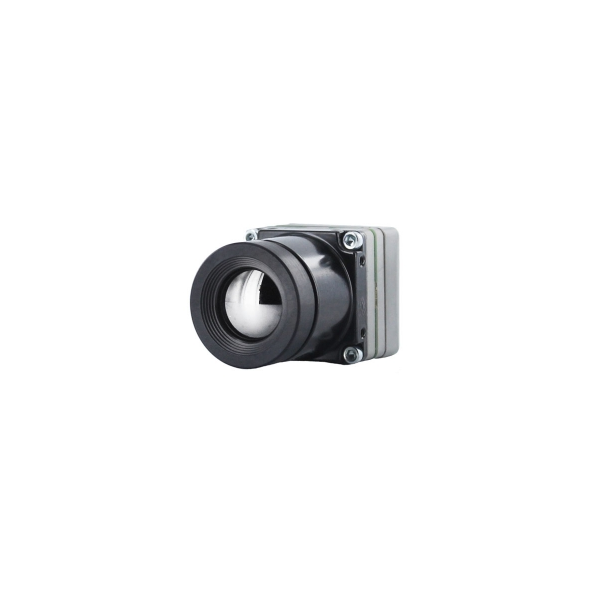

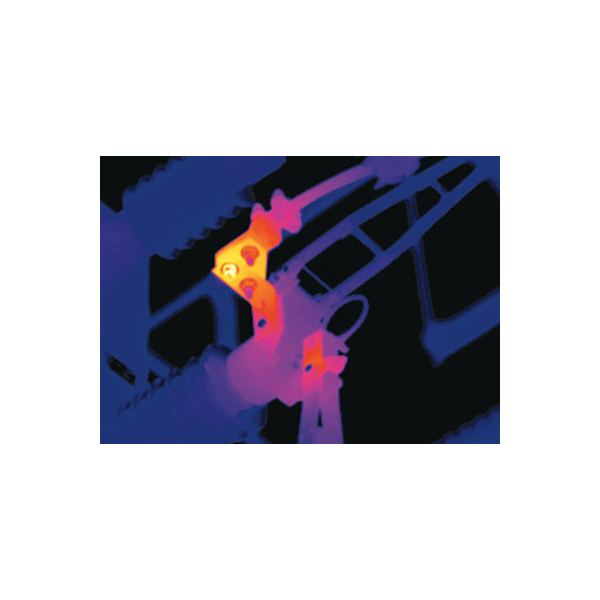

The Quark 336 FLIR offers a respectable performance in a compact package FLIR and lightweight. The intransigent size Quark 336 FLIR offers a new range of applications for R & D in the size and weight are important factors. Weighing less than 25 grams and 22 x 22 mm in size, the FLIR Quark is the smallest in its class. FLIR does not compromise quality for the size in Quark 336, offering a resolution of 336 x 256 that will face any longwave thermal camera .
Compact, powerful and revolutionary
Thanks to its compact design, Quark, power consumption is minimal , the granting of extended use of the camera and release energy for other needs. The FLIR Quark was designed with a high impact and vibration tolerance so designed for years of maintenance free operation at an affordable price .
Correction Field Flat
Traditional thermal cameras require a physical mechanism that quickly re- configure the microbolometer and the internal components of a thermal imaging camera .
The FLIR Quark utilizes digital temperature based on the environment setting device . This configuration prevents the digital error of the moving parts and allows a very compact form factor .
key Features
Ultra - small volume, low mass : Allows new applications in smaller packages
Low power consumption : Get the most out of the available power
High shock and vibration tolerance : Designed for years of maintenance free operation
30/60 Hz field - switchable frame rates (336 only)
17 micron pixels
Affordable compared to most thermal imaging cameras on the market.
Overview |
Quark 640 |
Quark 336 |
Thermal Imager | Uncooled VOx Microbolometer | |
FPA / Digital Video Display Formats | 640 × 512 | 336 × 256 |
Analog Video Display Formats | 640 x 480 (NTSC); 640 x 512 (PAL)1 | |
Pixel Pitch | 17 µm | |
Spectral Band | 7.5 - 13.5 µm | |
Full Frame Rates | 30 Hz (NTSC) 25 Hz (PAL) |
30/60 Hz (NTSC) 25/50 Hz (PAL) |
Exportable Frame Rates | 7.5 Hz (NTSC); 8.3 Hz (PAL) | |
Sensitivity (NEdT) | <50 mK at f/1.0 | |
Scene Range (High Gain) | -40°C to +160°C | |
Scene Range (Low Gain) | N/A | |
Time to Image | <3.5 sec | |
Factory Optimized Video | Yes | |
Physical Attributes |
Quark 640 |
Quark 336 |
Size (w/o lens) | 17 x 22 x 22 mm | |
Weight (body & lens) | 18.3g (6.3mm); 27.3g (9mm); 23.7g (13mm lens); 23.0g (14mm lens); 24.1g (17mm lens); 23.8g (19mm lens); 28g (35mm lens) |
|
Precision Mounting Holes (M1.6x0.35) on 4 sides (2 per side) |
Yes | |
Image Processing & Display Controls |
Quark 640 |
Quark 336 |
NTSC/PAL (field switchable) | Yes | |
Image Optimization | Yes | |
Digital Detail Enhancement | Yes | |
Invert/Revert (analog and 8-bit digital) | Yes | |
Polarity Control (black hot/white hot) | Yes | |

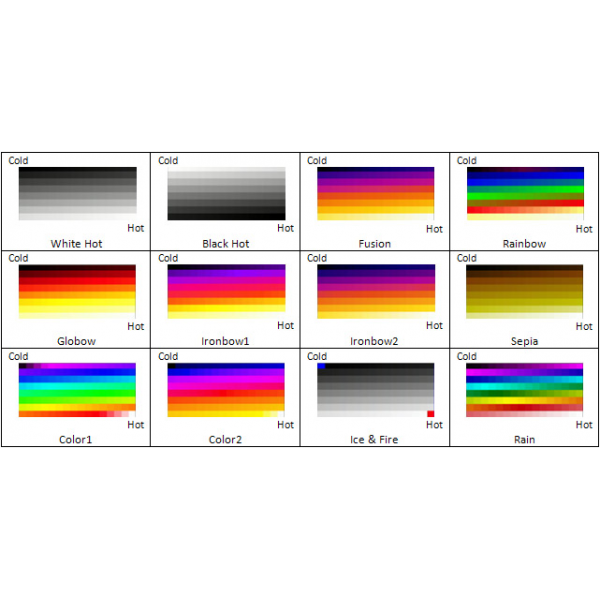

Color & Monochrome Palettes (LUTs) | Yes | |
Digital Zoom | 2x, 4x, 8x | 2x, 4x |
Symbology (256 gray & 256 color) | Yes | |
Digital Video |
Quark 640 |
Quark 336 |
LVDS (14-bit or 8-bit) | Yes | |
CMOS (14-bit or 8-bit) | Yes | |
BT.656 (8-bit) | Yes | |
Slow Video Option (factory configured) | Yes | |
Interfacing |
Quark 640 |
Quark 336 |
Primary Electrical Connector | 60-pin SAMTEC | |
Input Power | 3.3 VDC +/-0.1VDC | |
Power Dissipation, steady state | ~1.0 W | |
Flat-Field Correction (FFC) Duration | <0.5 sec | |
Power Reduction Switch (disables analog video) | Yes | |
RS-232 Compatible Communication2 | 57,600 & 921,600 baud | |
External Sync Input/Output | Yes | |
Discrete I/O Controls Available | Yes | |
Settable Splash Screens | Yes (10-camera minimum) | |
User Configurability via SDK & GUI | Yes | |
Dynamic Range Switching | Yes | |
Environmental |
Quark 640 |
Quark 336 |
Operating Temperature Range | -40°C to +80°C | |
Non-Operating Temperature Range | -55°C to +105°C | |
Temperature Shock (5°/min) | Yes | |
Operational Altitude (up to 40,000) | Yes | |
Humidity (non-condensing between 5% - 95%) | Yes | |
Vibration | 4.3grms random vibration along any axis | |
Mechanical Shock | 250g (1.5msec half-sine) and 500g (0.8msec half-sine) along any axis | |
ROHS, REACH, and WEEE Compliant | Yes |
|

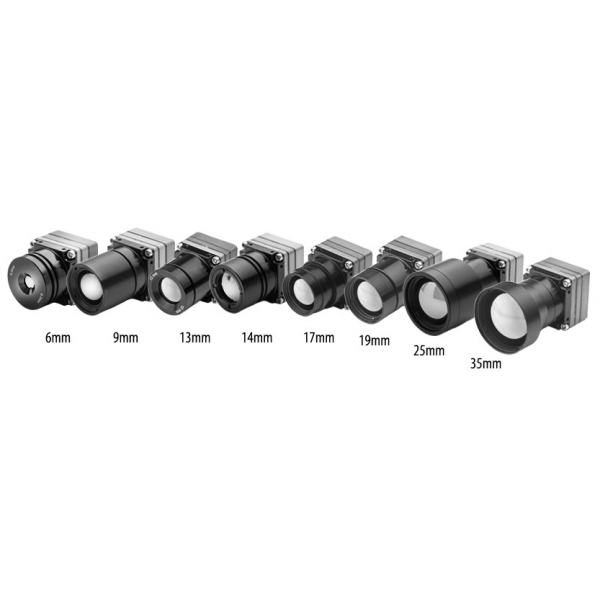

6.3 mm
|
9 mm
|
13 mm
|
14 mm
|
17 mm
|
19 mm
|
|
Quark 640 | FoV iFoV |
N/A | 69° x 56° 1.889 mr |
45° x 37° 1.308 mr |
43° x 35° 1.214 mr |
36° x 29° 1 mr |
32° x 26° 0.895 mr |
Quark 336 | FoV iFoV |
50° x 40° 2.698 mr |
35° x 27° 1.889 mr |
24° x 19° 1.308 mr |
23° x 18° 1.214 mr |
19° x 15° 1 mr |
16° x 13° 0.895 mr |
Min Focus Distance | 5cm | 9cm | 15cm | 20cm | 10cm | 30cm | |
Lens Mount | M19x0.5-6H inside thread | ||||||
Diameter | 20.6 mm | ||||||
Weight (lens) | 8.2g | 17.2g | 12.1g | 12.9g | 14.0g | 12.2g | |
Weight (lens & camera) | 18.3g | 27.3g | 23.7g | 23.0g | 24.1g | 23.8g |
|
25 mm
|
35 mm
|
|
Quark 640 | FoV iFoV |
25° x 20° 0.680 mr |
18° x 14° 0.496 mr |
Quark 336 | FoV iFoV |
13° x 10° 0.860 mr |
9.3° x 7.1° 0.496 mr |
Min Focus Distance | 20cm | 2m | |
Lens Mount | M19x0.5-6H inside thread | ||
Diameter | 28 mm | 26.9 mm | |
Weight (lens) | 34g | 17.2g | |
Weight (lens & camera) | 44.1g | 27.3g |
