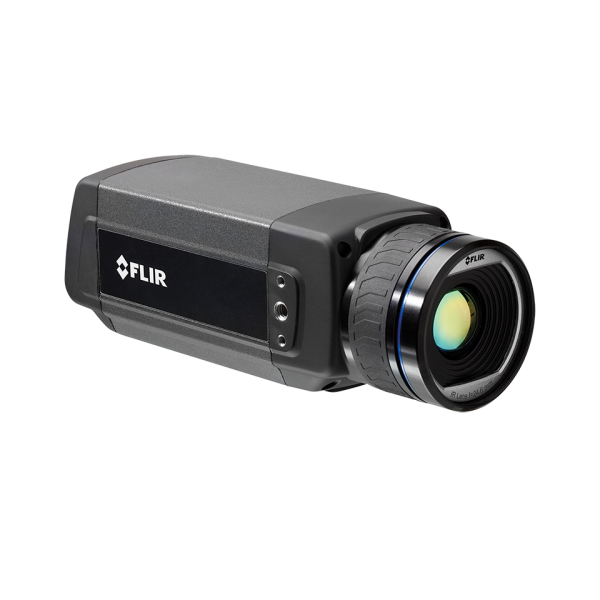

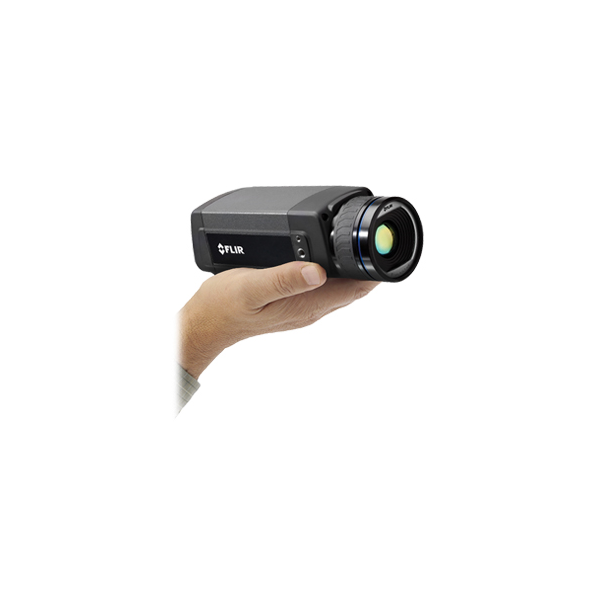

FLIR A615 Thermal Imaging Camera
The FLIR A615 is a world class 640 × 480 thermal imaging camera. This thermal imaging camera has features and functions that make it the first choice for those who want to use high-resolution thermal images to solve problems or analyzation.
Among its features are GigE Vision ™ and compliance GenICam ™, making plug-and-play ready when used with software packages such as IMAQ Vision and Halcon.
The FLIR A615 thermal camera is used in several industries where infrared and thermal measurement is required. Automotive seat self-heating, engine manufacturing, food processing, and electronics are just some of the sectors in which the FLIR A615-A Series used.



The FLIR A615 thermal imaging camera offers several different lens options
Model FLIR A615 80°
(55001-0105)		 FLIR A615 45°
(55001-0103)		 FLIR A615 25°
(55001-0102)		 FLIR A615 15°
(55001-0101)		 FLIR A615 7°
(55001-0104)		 FLIR A615
Close-up 1.5x
(T198066)		 FLIR A615
Close-up 2.9x
(T198059)		 FLIR A615
Close-up 5.8x
(T198060)
Resolution 640×480
Resolution		 640×480
Resolution		 640×480
Resolution		 640×480
Resolution		 640×480
Resolution		 640×480
Resolution		 640×480
Resolution		 640×480
Resolution
Field of View 80° x 64.4° 45° x 34° 25° x 19° 15° x 11° 7° × 5.3° 16 × 12 mm
(20 mm diagonally)		 32 × 24 mm
(40 mm diagonally)		 64 × 48 mm
(80 mm diagonally)
Focal Length 6.5 mm
(0.26 in.)		 13.1 mm
(0.52 in.)		 24.6 mm
(0.97 in.)		 41.3 mm
(1.63 in.)		 88.9 mm
(3.5 in.)		 - - -
Depth of Field - - - - - 0.21mm 0.65mm 2.8mm



FLIR A300

FLIR A310

FLIR A315

FLIR A615
320×240 Resolution 320×240 Resolution 320×240 Resolution 640×480 Resolution
MPEG-4 Streaming Video Extensive Analasys Functions 16-bit Image Streaming 16-bit Image Streaming
Composite Video Out Built-in Alarm Functions GigE Vision™ Standard Compatabiltity GigE Vision™ Standard Compatability
Most Affordable Ethernet/IP Connectivity GenICam™ Protocol Support GenICam™ Protocol Support
  Digital Inputs/Outputs Digital Inputs/Outputs Digital Inputs/Outputs
      Windowing Mode
Imaging and Optical Data
Field of view (FOV) 25° x 18.8°
Minimum Focus Distance 0.4m
Focal Length 18mm
Spatial Resolution 1.36mrad
Lens Identification Automation
F-number 1.3
Thermal sensetivity / NETD <0.05°C @ + 30°C/ 50mK
Image Frequency 30Hz
Focus Automatic or manual (built in motor)
Zoom 1-8x continuous, digital, interpolating zooming on images
Detector Data
Detector Type Focal Plane Array (FPA), uncooled microbolometer
Spectral Range 7.5-13µm
IR Resolution 320 x 240pixels
Detector Pitch 25µm
Detector Time Constant Typical 12ms
Measurement
Object Temperature Range -20°C to + 120°C
0 to +350°C
Accuracy ±2°C or ±2% of reading
Set-up
Color Palettes Color palettes (BW, BW inv, Iron, Rain)
Set-up Commands Date/ time, Temperature°C
Storage of Images
Image Storage Type Built-in memory for image storage
File Format Standard JPEG, 16-bit measurement data included
Ethernet
Ethernet Control and image
Ethernet, type 100Mbps
Ethernet, standard IEEE 802.3
Ethernet, connection type RJ-45
Ethernet, communication TCP/IP socket-based FLIR proprietary
Ethernet, video streaming MPEG-4, ISO.IEC 14496-1 MPEG-4 ASP@ L5
Ethernet, image streaming 16-bit 320 x 240 pixels @ 3 Hz
Ethernet, power Power over Ethernet, PoE Ieee 802.3af class 0
Ethernet, protocols TCP, UDP, SNTP, RTSP, RTP, HTTP, ICMP,
IGMP, ftp, SMTP, SMB (CIFS), DHCP, MDNS (Bonjour), uPnP
Digital Input/Output
Digital Input, purpose Image tag (start/ stop/ general), Input ext. device (programmatically read)
Digital Input 2 opto-isolated, 10-30 VDC (programmatically set)
Digital Output, purpose Output to ext. device
Digital Output 2 opto-isolated, 10-30 VDC, max 100mA
Digital I/O, isolation voltage 500VRMS
Digital I/O, supply voltage 12/24 VDC, max 200 mA
Digital I/O, connector voltage 6-pole jackable screw terminal
Composite Video
Video Out Composite video output, PAL and NTSC compatible
Video, standard CVBS (ITU-R-BT.470 PAL/ SMPTE 170M NTSC)
Video, connector type Standard BNC connector
Power System
External Power Operation 12/24 VDC, 24W absolute max
External Power, connector type 2-pole jackable screw terminal
Voltage Allowed range 10-30 VDC
Environmental Data
Operating Temperature Range -15°C to +50°C
Storage Temperature Range -40°C to +70°C
Humidity (operating and storage) IEC 60068-2-30/24 h 95% relative humidity
+25°C to +40°C
EMC - EN 61000-6-2:2001 (Immunity)
- EN 61000-6-3:2001 (Emission)
- FCC 47 CFR Part 15 Class B (Emission)
Encapsulation IP 40 (IEC 60529)
Bump 25g (IEC 60068-2-29)
Vibration 2g (IEC 60068-2-6)
Physical Data
Weight 0.7kg
Camera size (L x W x H) 170 x 70 x 70mm
Tripod Mounting UNC1/4"-20 (on three sides)
Base Mounting 2 x M4 thread mounting holes (on three sides)
Housing Material Aluminium
Scope of Delivery
Packaging Contents Hard transport case or cardboard box
Infrared camera with lens
Calibration certificate
Ethernet cable
Mains cable
Power cable, pig-tailed
Power supply
Printed Getting Started Guide
Printed Important Information Guide
User documentation CD-ROM
Utility CD-ROM
Warranty extension card or Registration card
Supplies & Accessories
IR lens f = 30 mm, 15° incl. case
IR lens f = 10 mm, 45° incl. case
Close-up 4× (100µm) incl. case
Close-up 2× (50µm) incl. case
Lens 76 mm (6°) with case and mounting support for A/SC3XX
Lens 4 mm (90°) with case and mounting support for A/SC3XX
Close-up 1× (25µm) incl. case and mounting support for A/SC3XX
High temp. option +1200°C/+2192°F for FLIR T/B2XX to T/B4XX and A/ • • •
SC3XX Series
Power supply for A/SC3XX and A/SC6XX
Power cord EU
Power cord US
Power cord UK
Video cable, 3.0 m/9.8 ft.
Ethernet cable CAT-6, 2m/6.6 ft.
Power cable, pigtailed
Hard transport case for A/SC3XX and A/SC6XX series
Delivery Box for A/SC3XX
ThermoVisionTM System Developers Kit Ver. 2.6



Accesorios

Lenses

  • T197914; IR lens, f=41.3 mm (15°) with case
  • T197922; IR lens, f=24.6 mm (25°) with case
  • T197915; IR lens, f=13.1 mm (45°) with case
  • T198065; IR lens, f=6.5 mm (80°) with case
  • T198165; IR lens, f=88.9 mm (7°) with case and support for A6xx/A6xxsc

Power

  • 1910400; Power cord EU
  • 1910401; Power cord US
  • 1910402; Power cord UK
  • T910922; Power supply, incl. multi plugs, for A3xx, A3xxsc, A6xx and A6xxsc
  • T911182; Power supply for A3xx f, IP66

Cables

  • 1910423; USB cable Std A <-> Mini-B
  • T951004; Ethernet cable CAT-6, 2m/6.6 ft.
  • 1910586; Power cable, pigtailed

Transport, hard cases & other

  • T197871; Hard transport case for A3xx, A3xxsc, A6xx and A6xxsc series
  • T197870; Cardboard box for A3xx, A3xxsc, A6xx and A6xxsc series

Software

  • DSW-10000; FLIR IR Camera Player
  • T197038; ThermoVision™ System Developers Kit Ver. 2.6
  • T197039; ThermoVision™ LabVIEW® Digital Toolkit Ver. 3.3
  • T197965; FLIR Tools
  • T127648; FLIR Tools+ (license only)

Services

  • T199827; One year extended warranty for A6xx, A6xxsc series
  • T199831; Calibration including General maintenance A6xx, A6xxsc series (fixed cameras)

Related Products
