FLIR A15 19mm

Quick Overview

FLIR A15 19mm Compact A-Series:
Smaller profile with no loss of performance
FLIR A15 19mm

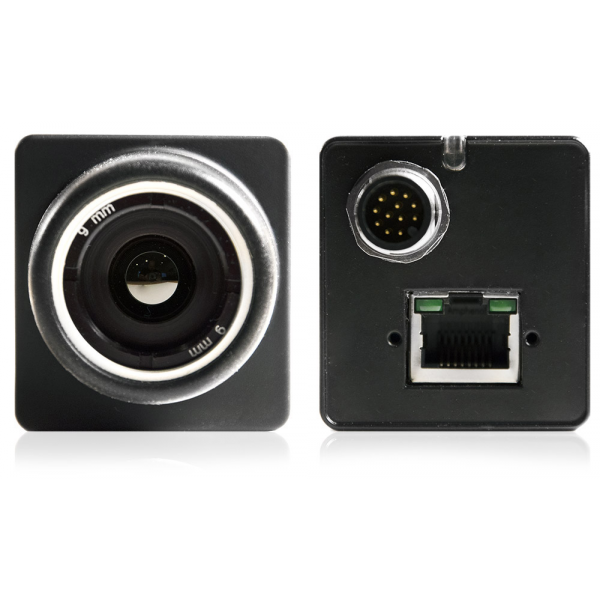

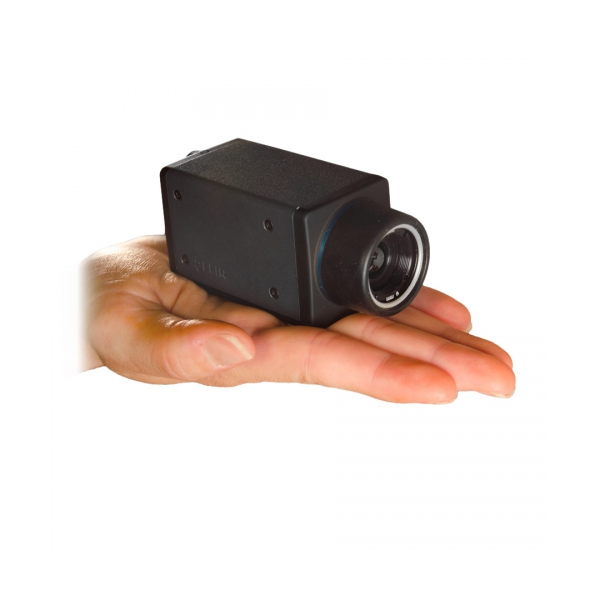

The FLIR A15 19mm Compact A-Series is a new addition to the thermography line-up designed with Machine Vision applications in mind to fit in the tightest of spaces. The Compact A-Series cameras bring an affordable plug and play solution with the GigE and GenICam protocols that are common in the Machine Vision industry. This model specifically is a 160 × 128 resolution thermal imaging camera with a 25° × 19° field of view and a 60 Hz image frequency.

The GigE and GenICam compatibility coupled with the cameras ability to be powered using POE makes this camera easy to install and configure. The Compact A-Series camera series provide fast data transfer with up to High 60 Hz frame rate streams 8- and 16-bit thermal images, and temperature sensitivity of <50 mK providing the finest image details and temperature difference information making it an ideal fit for automatic inspection, quality assurance, sorting and many other Machine Vision applications.

Multiple Color Palette Options
The benefit of using a FLIR A15 19mm camera begins with the form factor and expands with the use of multiple color palette options. Now you can view a scene in Black & White, Iron and Rainbow. This means you can get further in-depth analasys of your scene.

Below are 3 different scenes shot with each color palette using the FLIR A35 with a 9mm (40°) lens. Compare the modes to see the difference in range.

Features
Affordable - The FLIR A15 19mm Compact A-Series is an extremely affordable unit. From now on price is no longer an issue for deploying thermal imaging cameras to monitor continuous processes.

Compact - Extremely compact, measuring only 40 mm x 43 mm x 106 mm the FLIR A15 19mm Compact A-Series can easily be integrated in every production line.

GigE VisionTM Standard Compatibility - GigE Vision is a new camera interface standard developed using the Gigabit Ethernet communication protocol. GigE Vision is the first standard to allow for fast image transfer using low cost standard cables even over long distances. With GigE Vision, hardware and software from different vendors can inter-operate seamlessly over GigE connections.

GenICamTM Protocol Support - The goal of GenICam is to provide a generic programming interface for all types of cameras. Regardless of interface technology (GigE Vision, Camera Link, 1394 DCAM, etc.) or features implemented, the Application Programming Interface (API) will always be the same. The GenICam protocol also makes it possible to use third party software with the camera. GenICam makes the FLIR compact A-Series plug-and-play when used with software packages such as IMAQ Vision and Halcon.

Power over Ethernet (PoE) - Communication and power supplied with only one cable.

Synchronization - Possible to configure one camera to be master and others to be slave(s) for applications that call for more than one camera to cover the object or for stereoscopic applications.

General Purpose Input/Output (GPIO) - One output that can be used to control other equipment and one input to read the status from the same equipment.

High sensitivity < 50 mK - < 50 mK thermal sensitivity captures the finest image details and temperature difference information.

Model

 FLIR A5
f=9 mm		 FLIR A5
f=5 mm		 FLIR A15
f=19 mm		 FLIR A15
f=9 mm		 FLIR A35
f=19 mm		 FLIR A35
f=9 mm		 FLIR A65
f=25 mm
(9 Hz)		 FLIR A65
f=13 mm
(9 Hz)
Imaging and Optical Data
Detector Uncooled Microbolometer
IR Resolution 80 × 64 pixels 160 × 128 pixels 320 × 256 pixels 640 × 512 pixels
Thermal Sensitivity/NETD < 0.05°C @ +30°C (+86°F) / 50 mK
Field of View (FOV) / Minimum Focus Distance 25° × 20° 44° × 36° 25° × 19° 48° × 39° 25° × 19° 48° × 39° 25° × 20° 45° × 37°
Focal Length 9 mm
(0.35 in.)		 5 mm
(0.20 in.)		 19 mm
(0.75 in.)		 9 mm
(0.35 in.)		 19 mm
(0.75 in.)		 9 mm
(0.35 in.)		 25 mm
(0.98 in.)		 13 mm
(0.5 in.)
Spatial Resolution (IFOV) 5.56 mrad 10.0 mrad 2.63 mrad 5.56 mrad 1.32 mrad 2.78 mrad 0.68 mrad 1.31 mrad
Focus Manual
F-Number 1.25
Image Frequency 60 Hz 9 Hz

Detector Data
Focal Plane Array (FPA) / Spectral Range Uncooled VOX microbolometer / 7.5 - 13 µm
Detector Pitch 50 µm 25 µm 17 µm
Detector Time Constant Typical 12 ms

Ethernet
Ethernet Control and image
Ethernet, Type Gigabit Ethernet
Ethernet, Standard IEEE 802.3
Ethernet, Connector Type RJ-45
Ethernet, Communication GigE Vision ver. 1.2
Client API GenICam compliant
Ethernet, Image Streaming 8-bit monochrome
@ 60 Hz
Signal linear/ DDE
Automatic/ Manual
Flip H&V

14-bit
80 × 64 pixels
@ 60 Hz
Signal linear/ DDE
GigE Vision and GenICam compatible		 8-bit monochrome
@ 60 Hz
Signal linear/ DDE
Automatic/ Manual
Flip H&V

14-bit
160 × 128 pixels
@ 60 Hz
Signal linear/ DDE
GigE Vision and GenICam compatible		 8-bit monochrome
@ 60 Hz
Signal linear/ DDE
Automatic/ Manual
Flip H&V

14-bit
320 × 256 pixels
@ 60 Hz
Signal linear/ DDE
GigE Vision and GenICam compatible		 8-bit monochrome
@ 60 Hz
Signal linear/ DDE
Automatic/ Manual
Flip H&V

14-bit
640 × 512 pixels
@ 9 Hz
Signal linear/ DDE
GigE Vision and GenICam compatible
Ethernet, Power Power over Ethernet, PoE IEEE 802.3af class 0 Power
Ethernet, Protocols TCP, UDP,ICMP, IGMP, DHCP, GigEVision

Digital Input / Output
Digital Input, Purpose General purpose
Digital Input 1× opto-isolated, “0” < 2, “1”=2–40 VDC
Digital Output, Purpose General purpose Output to ext. device (programmatically set)
Digital Output 1× opto-isolated, 2–40 VDC, max 185 mA
Digital I/O, Isolation Voltage 500 VRMS
Digital I/O, Supply Voltage 2–40 VDC, max 200 mA
Digital I/O, Connector Type 12-pole M12 connector (shared with Digital Synchronization and External power)
Synchronization In, Purpose Frame sync In to control camera
Synchronization In 1×, non-isolated
Synchronization In, Type LVC Buffer @3.3V, “0” <0.8 V, “1”>2.0 V.
Synchronization Out, Purpose Frame sync out to control another FLIR Ax5 camera
Synchronization Out 1×, non-isolated
Storage Temperature Range -40°C to 70°C (-40°F to 158°F )
Synchronization Out, Type LVC Buffer @ 3.3V, ”0”=24 MA max, “1”= –24 mA max.
Digital Synchronization, Connector Type 12-pole M12 connector (shared with Digital I/O and External power)

Environmental Data
Operating Temperature Range –15°C to +50°C (+5°F to +122°F)
Storage Temperature Range –40°C to +70°C (–40°F to +158°F)
Humidity (Operating and Storage) IEC 60068-2-30/24 h 95% relative humidity +25°C to +40°C (+77°F to +104°F)
EMC EN 61000-6-2 (Immunity)
EN 61000-6-3 (Emission)
FCC 47 CFR Part 15 Class B (Emission)
Encapsulation IP 40 (IEC 60529)
Bump 25 g (IEC 60068-2-29)
Vibration 2 g (IEC 60068-2-6)

Physical Data
Weight 0.200 kg (0.44 lb.)

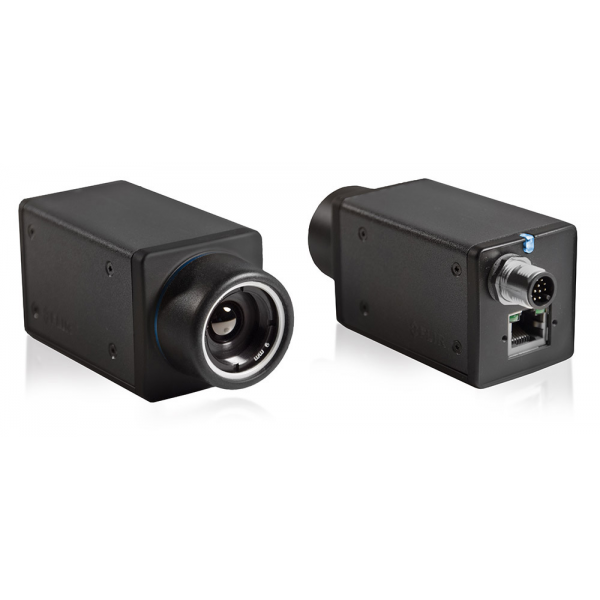

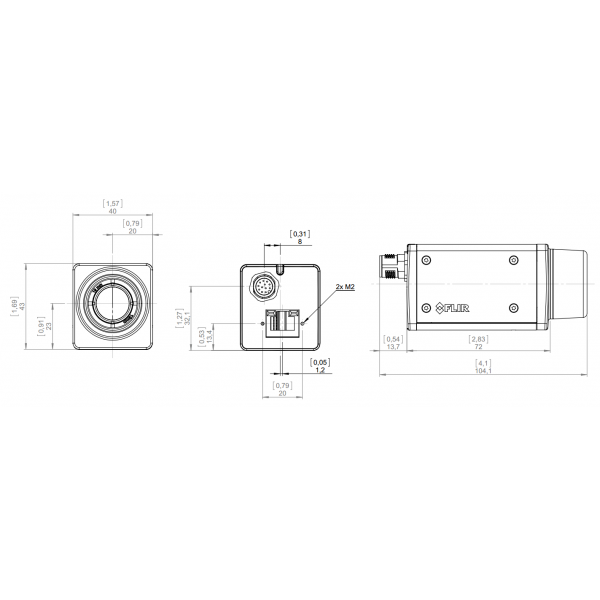

Camera Size (L × W × H) < 106 × 40 × 43 mm (4.2 × 1.6 × 1.7 in.)
Tripod Mounting UNC ¼"-20 (on three sides)
Base Mounting 4 × M3 thread mounting holes (bottom)
Housing Material Magnesium and aluminum
