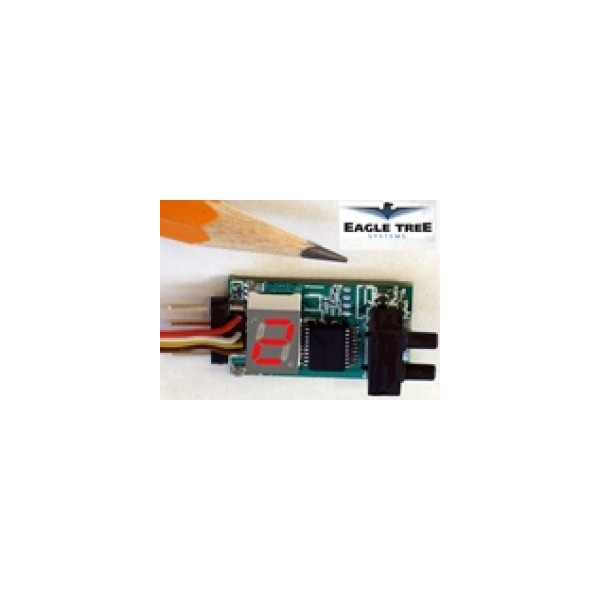

Sensor de velocidad V3 MicroSensor

Do I need to know how fast you went ? Our MicroSensor speed is the solution you've been looking for! The speed MicroSensor uses a Prandtl pitot tube style - static to measure air velocity , just as full size aircraft do .

When used independently , the MicroSensor shows the maximum speed in the 7-segment LED display built . Simply connect the sensors into a spare receiver channel or small battery (4V to 16V) and fly your model. The maximum speed is still updated and displayed on the LED . Then , when you land , your maximum speed is displayed on the 7-segment LED built . For example, if you flew 101 km / h , the unit will display " 1 - 0-1" repeatedly. No configuration , additional equipment or equipment required !

In addition, the MicroSensor can connect to your eLogger (any version ) to provide velocity data for your entire flight . When connected to the eLogger , wind speed can be displayed and plotted using the Windows software of eLogger or through the OSD if you fly with FPV .
In addition, the MicroSensor can connect to your eLogger (any version ) to provide velocity data for your entire flight . When connected to the eLogger , wind speed can be displayed and plotted using the Windows software of eLogger or through the OSD if you fly with FPV .

This sensor measures wind speed of about 9 MPH to 350 MPH.

Includes Pitot tube ( Prandtl ) , pitot tube , sensor and power cable.

* Compatible with eLogger but Data Recorder
Specifications ( Approximate):

· Measure the speed of 9 km / h at 350 MPH ( 15KPH to 563KPH ) , with 1 km / h (1 mph) resolution
· Power input ( Standalone Mode ) - 4V to 16V
· : Circuit weight of 4 grams (0.15 oz), dimensions 28 x 16 x 10 mm (1.1 "x 0.62 " x 0.4 " )
· Pitot tube : Weight 3 grams (0.1 oz), length 80mm (3.2 ) , 4 mm (0.16 in.).
· Hose Pitot tube : Silicon , clear , 3 feet (1 meter ), 1.5 mm ID , 2.5 mm OD
· Pre-calibrated - no user calibration required
· Advanced temperature compensation
· Metric or English units
