Medidor de voltaje
- Remove this product from my favorite's list.
- Add this product to my list of favorites.
The electric expander works with the data logger to measure current and voltage battery pack engine .

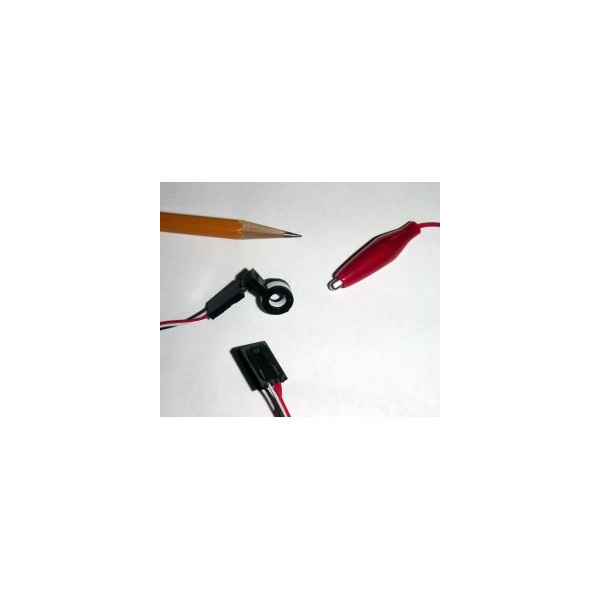

The expander current measured by a current sensor ring small lounge , light weight effects.
Battery pack voltage is measured by the clamp attached to the expansion . Available in three options: 100A, 140A , or 300A
Electric Expander - 100 Amp (ELEC -EXP -100)
Pack Voltage : 0 to 50V ( 70V option recorder with optional high voltage)
Pack Current: 0 to 100 amps, in increments of about 50 mA
Electric Expander - 140 Amp ( ELEC -EXP -140)
Pack Voltage : 0 to 50V ( 70V option recorder with optional high voltage)
Pack Current: 0 to 140 Amps , in approx 70mA increments .
Electric Expander - 300 Amp ( ELEC -EXP -300)
Pack Voltage : 0 to 50V ( 70V option recorder with optional high voltage)
Pack Current: 0 to 300 amps, in increments of about 150 mA
* Supports data recorder but not eLogger .
* Limit 1 Electric expander system
Electrical expander
Voltage output: 0 to 50V ( 70V option recorder with high voltage)
Current output:
( 100 amp sensor ) 0-100 amps, with approximately 50 mA resolution
(sensor 140 amp) 0 to 140 amps , with approximately 70 mA resolution
(sensor 300 amp) 0 to 300 amps , with approximately 150 mA resolution
Weight: ( 100, 140 sensor amp) about 0.3 ounces
(sensor 300 amp) about 1 ounce
Bore Ring Sensor:
100 amps : ~ 5mm
140 amps : ~ 7mm
300 amps : ~ 22 mm
