Dji NAZA M V.2 Estabilizador Multicopteros

Quick Overview

233,00 €

Estabilizador Multicopteros

New algorithm improves the stability and maneuverability.
New features Flight Control
Flight Control is softer
Improves takeoff maneuver is now easier
supports Octocopteros
If for an engine can land safely and Octocopteros Hexacoptero
Automatic compensation course deviation
Reducing the effects of the magnetic disturbance
Detection of interference by an alert warning compass
new IMU
advanced calibration , identification and reduction of errors, warnings, and improving the characteristic of flight

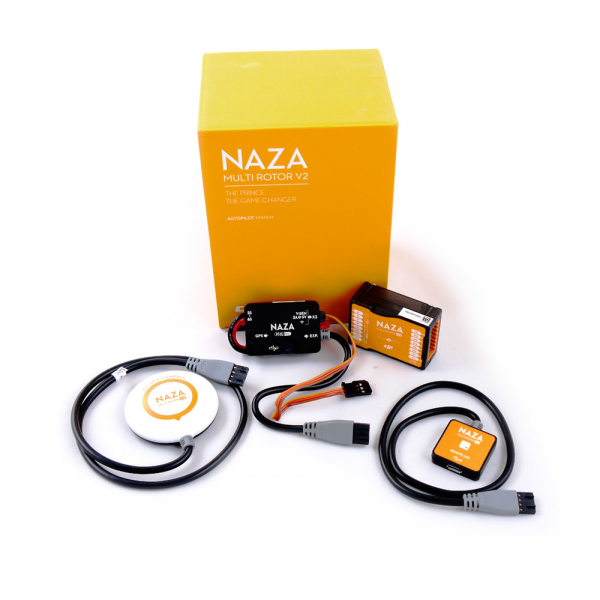

1 x Nazam V.2 control support multi - axis Octo- rotor
1 x PMU V.2 ( Bec , port CAMBUS )
1 x LED Module
8 x servo type connectors Cables
1 x USB Cable
1 x Micro-USB Cable
1 x Cable Can
All- in-one: in-One Design integrates on a single board , controller , gyroscope, accelerometer and barometer simplidicando installation and saves space
Independent V.2 with PMU ( Bec and Cambus port ) . Compatible with : IOSD , Gimbsl Zenmuse Led H3- 2D and bluetooth
Advanced Flight Stabilization Algorithm
Nine Types Supported multi - rotors : Quad I, X Quad, Hexa I, V Hexa , Hexa Y, IY Hexa , Octo X , I Octo , Octo V
Multiple modes of flight / control / and intelligent flight: three types of control modes : GPS Atti . Mode ( with GPS module ) / Atti . Mode / Manual Mode .
GPS module available (optional ) / Hold position : plug and play GPS module greatly improve performance for aerial photography flights with the exact position "Hold " Return- To- Home and control features intelligent guidance . Accuracy is vertical , horizontal and 0.8 m to about 2.5 m .
Intelligent Orientation Control : Usually the forward direction of multicoptero is the same as the direction of the nose. By using intelligent control orientation ( IOC) , which points the nose , the forward direction has nothing to do with the direction of the nose.
FailSafe Enhanced Mode: Station will stick to the center position while naza this without receiving station signal .. If the GPS module is used , you can also set the failsafe for the multicoptero come home ( RTH
Two Levels of Protection / Low Voltage Warning : LED warning .
The first level continuous red light flashes and the second level of the red light will blink continuously and the multi - rotor descend and land .
Mode arming and disarming engines: There are four ways Arnar engine, intelligent mode disarmed and secure.
Valid for regular receiver , PPM, S -BUS :
Separate LED Module: Displays the status of the flight through the LED blink rate and color The pilot can more easily find , even at night .
The LED module has a USB interface, which is used for setting parameters and update firmware.
2-axis stabilization ( Gimbal ) - The stabilization module is compatible with almost all camera supports 2-axis . The system will be configured according to the camera bracket .
Protection of a power failure of an engine. The multicoptero can fly stabilized and even landing with an engine less. Only hexacopteros and Octocopteros .
Remote Gain Adjustment : The adjustment is made during flight by using a deslizader of the station, in order to obtain a better fit and faster.
Assitente New Software and Firmware upgrade online : The logical design makes the parameter values more simple. Like other products firmware DJI Naza -M V2 controller.

Basic Performance Multicoptero que admite Reguladores admitidos  Emisora Recomendada Voltaje de Funcionamiento
Quadcopteros I4, X4
Hexacopteros I6, X6, IY6, Y6
Octocopteros I8,V8,X8
 hasta 400Hz frequencia PCM o 2.4GHz con un minimo de 4 canales MC:4.8V~5.5V
Entrada V: 7.4V ~ 26.0 V
(recomendado 2S ~ 6S LiPo)
Salida(V-SEN port red wire): 3A@5V
(Max intensidad temporal:7.5A)
Consumo Temperatura Assistente Software Sistemas
MAX: 3.15W(0.25A@12.6V)
-10°C ~ 50°C Windows XP sp3 / Windows 7 / Windows 8
Flight Performance Presicion
(GPS Mode)
Velocida Max Yaw Angular Max Tilt Angle Subida / Descenso
200°/s 35° 6m/s,4.5m/s
Hardware Peso Tamaño Funciones
MC: 45.5mm x 32.5mm x 18.5mm
PMU: 39.5mm x 27.5mm x 10.0mm
GPS & Compass 46mm(diameter)x10mm
LED: 25mm x 25mm x 7.0mm
Multiple Autopilot Control Mode
Proteccion de Voltaje Bajo
Soporta receptores S-Bus
Soporta receptores PPM
Modulo PMU independiente
Soporta Gimbal de 2-ejes


The NAZA-M system communicates with other DJI products (e.g. H3-2D gimbal, BTU module, iOSD mini and iOSD Mark II) via the CAN-Bus port of the NAZA PMU V2. You can plug new DJI products into any spare CAN-Bus port, since CAN-Bus ports on NAZA-M, CAN HUB, GCU, iOSD mini and iOSD Mark II are the same for the communications. When there are not enough CAN-Bus ports for additional DJI products, then a DJI CAN HUB module is recommended. The following diagram is for your connection reference.

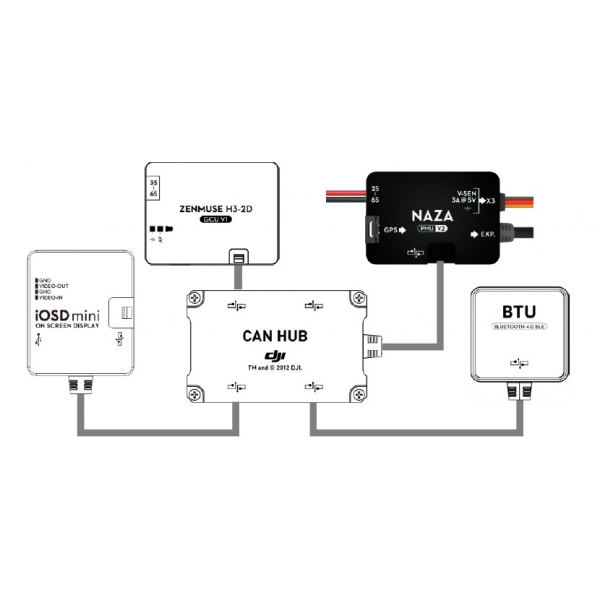

Used with CAN HUB

Naza-M Can Hub

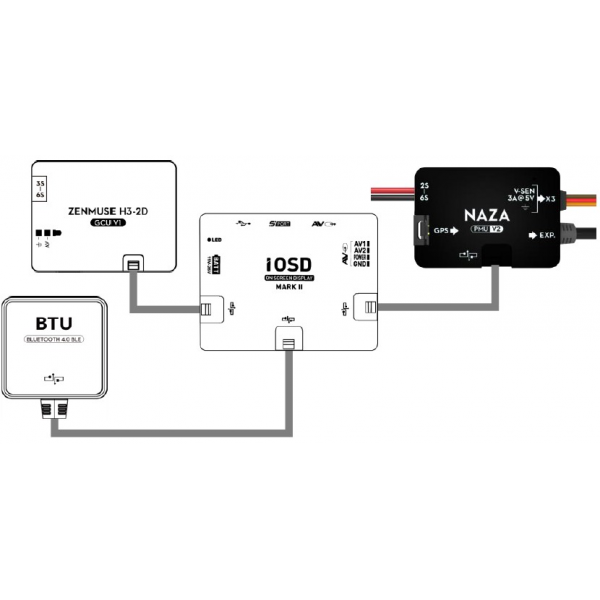

Used with iOSD Mark II
