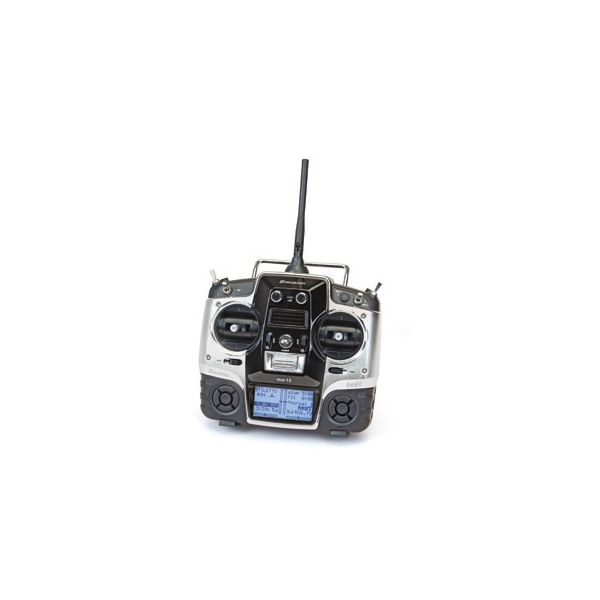

With 6 control functions, the mx-12 HoTT lets the advanced RC model builder to control numerous models. The use of Graupner HoTT 2.4-GHz transmission technology ensures great functional reliability through bidirectional communication between transmitter and receiver, with integrated telemetry, voice output via headphone output, and ultrafast response times.

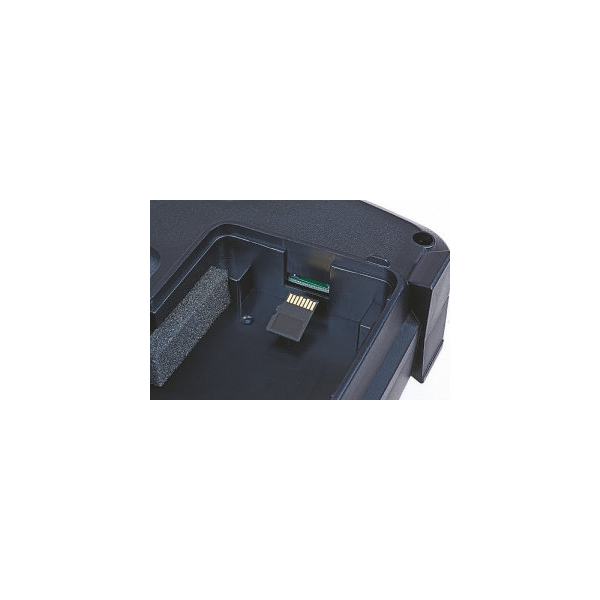

The transmitter has 10 model memories. Programming by keys. A contrast-rich, 8-line, blue-lit graphic display ensures perfect display of all setting parameters and telemetry data. Telemetry data and additional model memories can be stored on a micro-SD memory card. (later after update)
USB connector for reading out and storing model memories and for firmware upgrades.
Voice output via headphone output is available as an option.
- Microcomputer remote control system with state-of-the-art 2.4 GHz Graupner HoTT technology
- Bidirectional communication between transmitter and receiver
- 5 different languages (German, English, French, Italian and Spanish) possible via software update. For availability of the respective language, see Download area.
- Servo cycle times of 10ms can be selected for digital servos
- Ultrafast response times through direct transmission of the data from the main processor to the 2.4-GHz transceiver with reliable transmission. No additional delays through detours via a module processor
- Short aerial, foldable
- Operation and programming based on the proven concepts of mc-19 to mc-24
- A contrast-rich, 4-line, blue-lit graphic display ensures perfect control of settings and parameters such as model type, model memory, clocks, and operating voltage
- 6 control functions
- Free assignment of all switches
- 10 model memories
- 4 switches/keys, including 2 3-stage-switches, 1 2-stage switch, 1 key
- Modes 1 to 4 are freely selectable
- Key lock function to prevent unintentional operation
- Display change from main menu to telemetry main menu using the ESC key
- Numerous telemetry display, programming, and analysis functions directly in the transmitter display
- 3 flight phases can be programmed
- Extensive programmes for fixed-wing and helicopter models
- Swashplate limiter
- Servo travel adjustment: can be set separately for all servo channels and for each final value
- Sub-trim to set the neutral position of all servos
- 2-stage expo/dual-rate system, individually adjustable, can be switched during flight
- Mixer functions Programmable failsafe function »Hold« or »Advance to pre-set positions« adjustable separately for each individual servo channel
- Stop watches / countdown timers with alarm function
- Model copy function for model memories
The set includes:
Graupner HoTT mc-12 microcomputer telemetry transmitter with built-in NiMH 1500 mAh transmitter battery, Graupner HoTT GR-12 receiver, and 200mA transmitter charger
General HoTT features:
- Simple, extremely fast binding
- Range test and warning function
- Low-voltage warning
- Extremely broad receiver operating voltage range from 3.6 V to 8.4 V (functional to 2.5V)
- Failsafe, free channel allocation (channel mapping); mixer functions and all servo settings can be programmed simply with the HoTT-Smartbox
- Binding of any number of receivers for channel expansion (max. of 32 channels)
- Up to 4 servos can be controlled simultaneously as a block with a signal repetition time of 10 ms (only digital servos!)
- Maximum immunity to interference through optimised frequency hopping and broad channel spread
- Intelligent data transmission with correction function
- Extremely fast rebinding, even at max. distance
- Telemetry analysis in real time
