SLED V2 SONY RC SHUTTER

Quick Overview

24,60 €

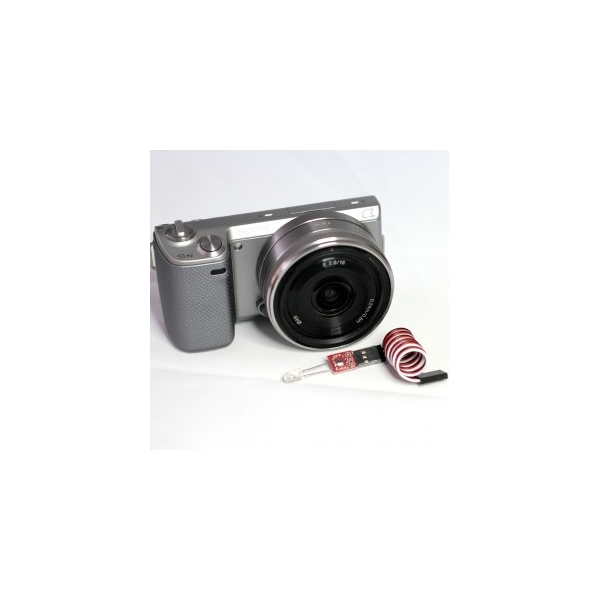

sLED is unique, lightweight and robust Infrared RC shutter system for Sony Nex5 / Nex 7 and other Sony IR Remote compatible cameras. You can use it for Video Start/Stop or Photo.



NEW sLED v2 SERIES



Previous sLED shutters was using 5mm standard IR LEDs to emmitting the signals.
Our new sLED v2 boards including onboard SMD IR LED for lighter, better and stronger design.
You can also attach it to IR window of your camera with a sticky tape.





Weight: 4gr
Voltage: 3-7 volts
Current: 2mA
Cable Length: 30cm
Accepting Signal: 1-2ms PPM over servo line.

USING sLED



  • Just plug it to your receivers'a any empty channel.
  • Use a 3 position switch, knob, stick or logical switch for controling the modes.
  • Configure your SONY for IR Remote.
    You can find the remote control menu under DRIVE MODES of Nex5 machines.
    If you are using other models please check the menu system to enable IR Remote mode.




Control Modes
CENTER position: Idle mode of sLED
UP Position:  Photo Shot
DOWN Position: Video Start/Stop





Compatible Models:


Whole ALPHA series SONY machines.
NEX-7
NEX-5,
SLT (A77 A65 A57 A55 A33),
DSLR (A900 A850 A700 A580 A560 A550 A500 A450 A390 A380 A330 A290 A230)


Note 1: Your model may not be included in the above list. Please check the manual of you camera to see whether it is compatible with IR video start/stop option.



Note 2: You should enable "IR remote" mode from your Sony's video menu before using this device.  You can find the remote control menu under DRIVE MODES of your Nex5 machines. If you are using other models please check the menu system to enable IR Remote mode.
