F450 Dji Kit E300 + Naza-M V2 + GPS + Tren Aterrizaje

Quick Overview

329,00 €

SPECIFICATIONS:

• chais F450 Weight : 282g
• Diagonal Wheelbase : 450mm
• Maximum takeoff weight: 800g to 1600g
• Props used: 8 x 4.5 " 10 × 3.8 ''
• Battery (recommended ) : LiPo ( 3S or 4S )
• Motor : 2212 - 920rpm / V
• ESC : 15A Opto ( 3S to 4S) 30 - 450Hz .
• - M NAZA flight controller V.2
• GPS + Support

  INCLUDES:

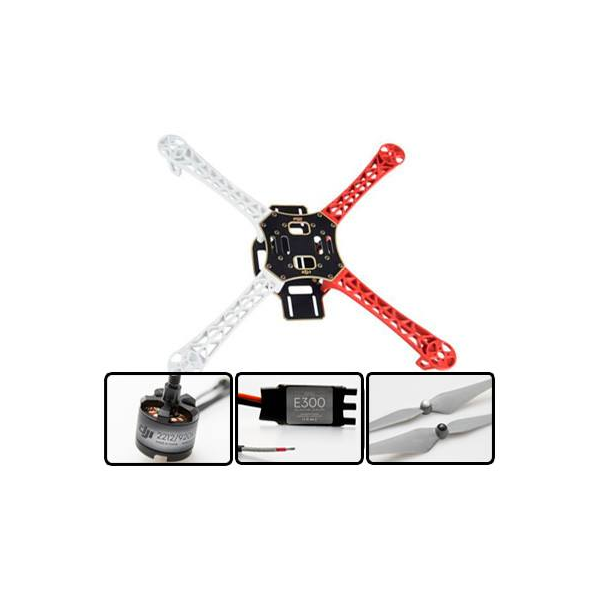

1 x F450 Chassis

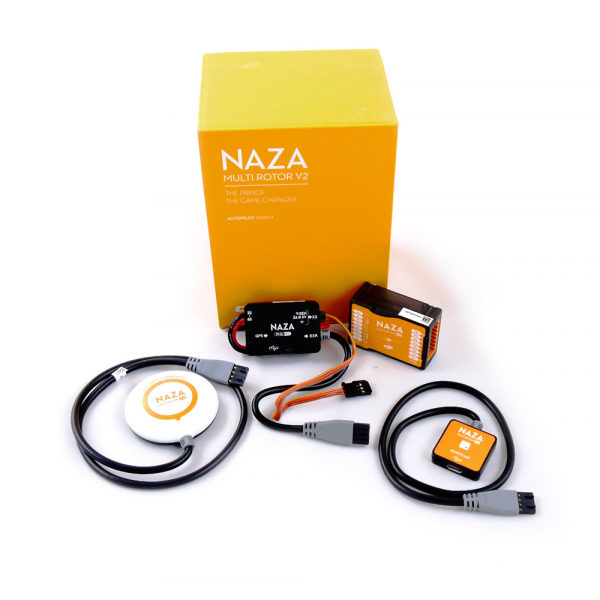

1 x Controller Dji Naza -M V.2
1 x GPS + Support
1 x Landing novelty !
4 x 15A Regulators Opto 30 - 450Hz novelty !
920 4 x 2212 RPM motors
Helices 6 x 9.4x4.3 "novelty ! (1 pair replacement )
1 x PMU Module
1 x Led Module

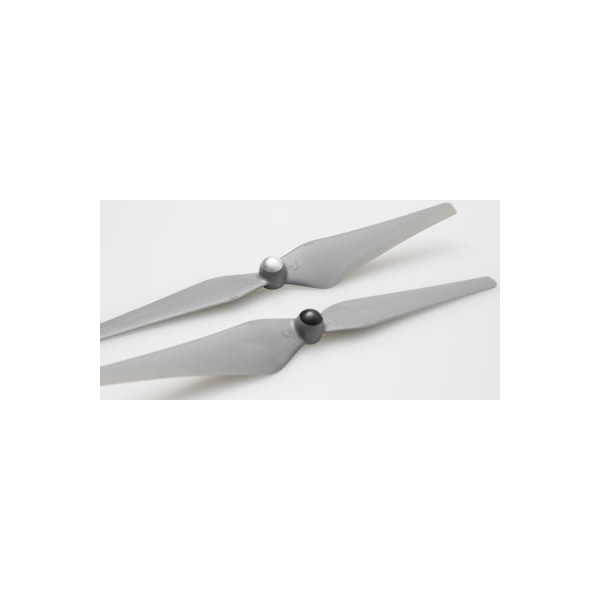

 Propeller 9.4 * 4.3 " High Performance

DJI has a new propeller design, size 9.4 x 4.3 " provides an improvement between aproximadametne . 20 % ~ 25 % of the propeller 8.0 x 4.5 , without changing to a heavier engine , so models F330 quad ~ F450 levanan significativametne greater weight and therefore are more powerful and now is no problem carrying a camera with Gimbal and Equipment FPV . these helices are balanced dynamically carefully , avoiding the jellow effect of your camera in the air appears. the low inertia design allows your flight controller using a value much higher gain for greater stability and increased maneuverability at the time also .

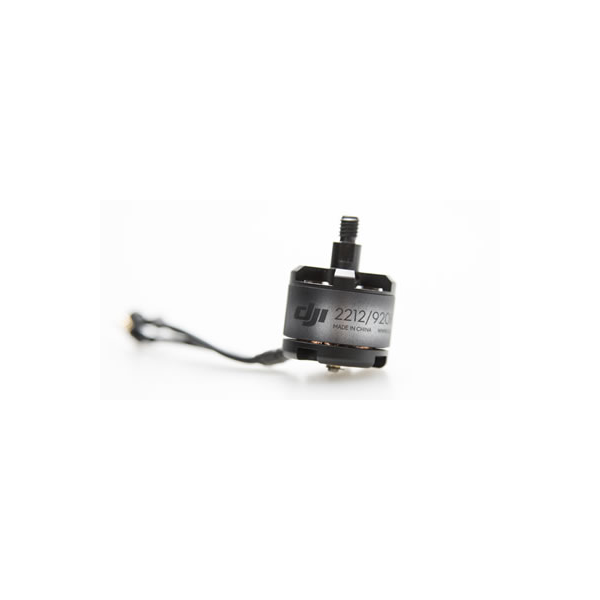

2212 Motor

This is the industry leader in multi - rotor engine , these engines have been used worldwide with proven reliability .

Use the best materials , from magnets, copper wire , the bearing to make the best products. Improved techniques of mass production , combined with our scientific quality control , reduces costs and ensures that our products more accessible to users. Our new self- tightening mechanism dramatically reduces any possibility of loosening the prop . The assembly and disassembly without tools makes storage and transportation easier .

Another advantage is that each one enters the propeller for your engine rotation direction , preserving the property of self - assembly and tighten without tools. There is no possibility of error when mounting the propeller of his multicoptero .

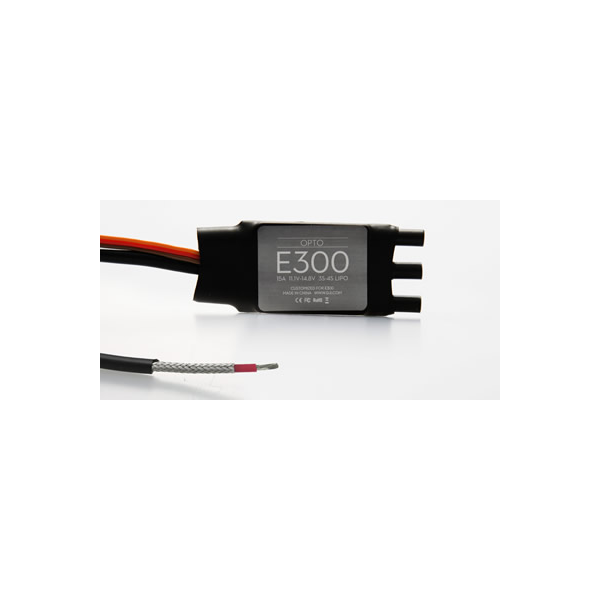

Regulator 15A

It is a move improved, along with new algorithms highly efficient and quick response model , are combined to provide maximum optimization between engine and propeller , all combine to enhance this propulsion system to use an agile thrust gives maneuverability aircraft and stability with wind and during the descent. They also have a design and electromagnetic compatibility with coaxial cable, to provide an electromagnetic environment calm. Without interference from other devices aboard electonica multicoptoro .
