SpiroNET Patch antena 5.8GHz CP
- Remove this product from my favorite's list.
- Add this product to my list of favorites.
LIGHTWEIGHT , HANDSET - upgradeable , GREAT VARIETY !

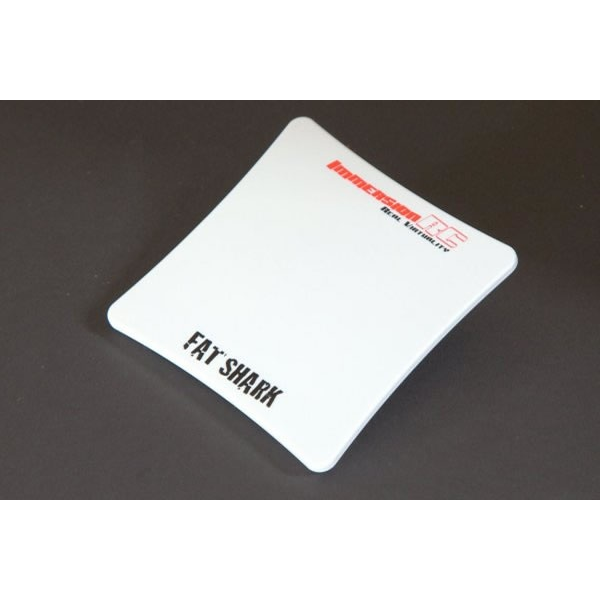

Compact circularly polarized 5.8GHz 13dBi patch antenna , with custom designed for FPV market. Pushing the limits of the range of 5.8 GHz, with multi - km flight possible even in systems 25mW CE- legal.

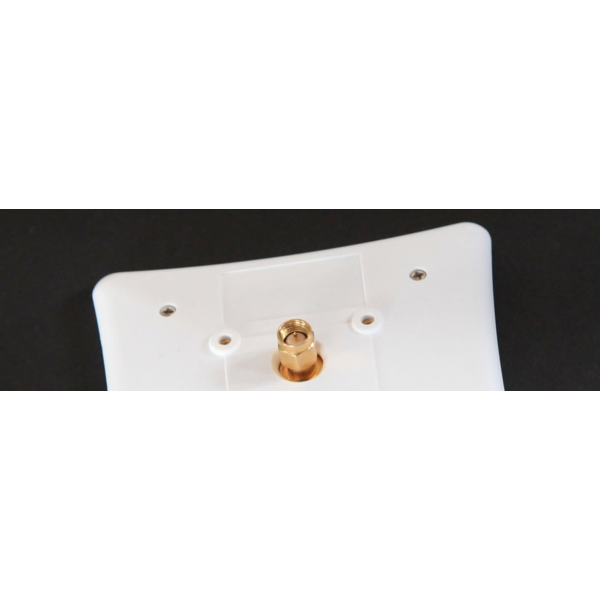

SMA connector support FatShark / ImmersionRC all products 5.8GHz
Circular Polarization Right
5.8GHz ISM Band
gain 13dBi
Beamwidth of 35 degrees (H + V )
This 5.8GHz antenna circularly polarized patch a custom design, no expense spared , for FPV market . Light enough to be mounted directly on a LCD headset, or directly in front of one of our receivers One or Duo . This antenna will give new life to 25MW systems -EC legal , allowing several km range easily. For systems of 600mW , it's time to start worrying about the scope of the control link , as a combination of this antenna, and spiroNET omni range of video can greatly exceed the control range of most radii of 2.4GHz . Precision manufactured with very tight tolerances and 100 % tested on a professional tester antennas ( Rhode and Schwartz) to ensure maximum performance and range . Ratio F / B is 26dB , VSWR is < 1.5:1 ( 5740 - 5860MHz ) . Impedance is 50 ohms .
specs
PLEASE NOTE : SPECIFICATION MAY CHANGE AT ANY TIME
Model Code: SN5G8RHPATCH
Model name: SpiroNET Patch antenna 5.8GHz CP
Category: TX and RX antennas
Initial release : February 1, 2013
Dimensions (LxWxH ): L = W = 92 mm x 10 mm x H = 92 mm
Weight ( grams): 53g
