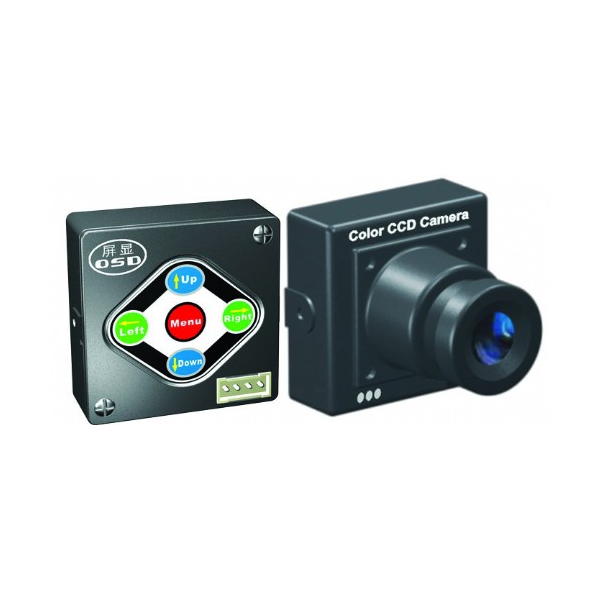

1/3 SONY CCD 480TVL Mini Video Camera OSD Menu
Maximize
1. With OSD function (Day&Light selectable, Mirror Image selectable (ON/OFF); White Balance selectable (Selectable (ATW / AWB / FIXED / MANUAL); Language selectable; AGC,BLC,Mask adjustable.
2. 600TVL high resolution
3. Good image in low light conditions
Key Specifications:
---Image sensor: 1/3" Sony SuperHAD II Color CCD
---Number of pixels: PAL: (H) 752 x (V) 582
---Horizontal resolution: 600TV lines
---Video output: 1Vp-p, 75O (negative)
---With OSD function
---White balance: Auto/ manual
---S/N ratio: More than 46dB
---Minimum illumination: 0.1Lux
---Lens options: Board lens, Pinhole lens
---Dimensions: 30 x 30mm
---Working Voltage: DC5-15V
---Housing: Black
|
Model No. |
CSYA3130CH |
CSY3130CH |
|
CCD Chip |
1/3" Sony SuperHAD II |
|
|
Effective Pixels |
PAL:752(H) x 582(V) NTSC:768(H)x494(V) |
NTSC:512(H) x 492(V) PAL:500(H) x 582(V) |
|
Resolution |
600 TVL |
480TVL |
|
Illumination |
0.05Lux |
0.01Lux |
|
Lens |
3.7mm pinhole lesn / 3.6mm MTV lens (optional) |
|
|
Scanning Sys. |
2:1 Interlace |
|
|
Scanning Freq.(H) |
PAL : 15.625 KHz / NTSC : 15.734KHz |
|
|
Scanning Freq. (V) |
PAL : 50Hz / NTSC : 59.94Hz |
|
|
S/N |
>48dB |
|
|
Sync. |
Internal |
|
|
Gamma |
? = 0.45 |
|
|
Video Output |
1[Vp-p]75(O) |
|
|
AGC |
OFF/Low/Middle/High optional |
|
|
White Balance |
ATW |
|
|
BLC |
ON/OFF (2 areas control) |
|
|
HLC |
ON (default) |
|
|
Motion Detection |
ON/OFF (4 areas optional)Alarm output |
|
|
WDR |
(D-WDR)ON |
|
|
NR |
ON |
|
|
Parking Line |
OFF |
|
|
OSD control |
Yes, On Screen Display |
|
|
Input Voltage |
DC5V-15V (±10%) |
|
|
Current Comsuption |
60mA-130mA |
|
|
E-shutter |
PAL : 1/50 ~ 1/100,000sec NTSC : 1/60 ~ 1/100,000sec Auto |
|
|
Size |
.30mm(W)x30mm(H) |
|
