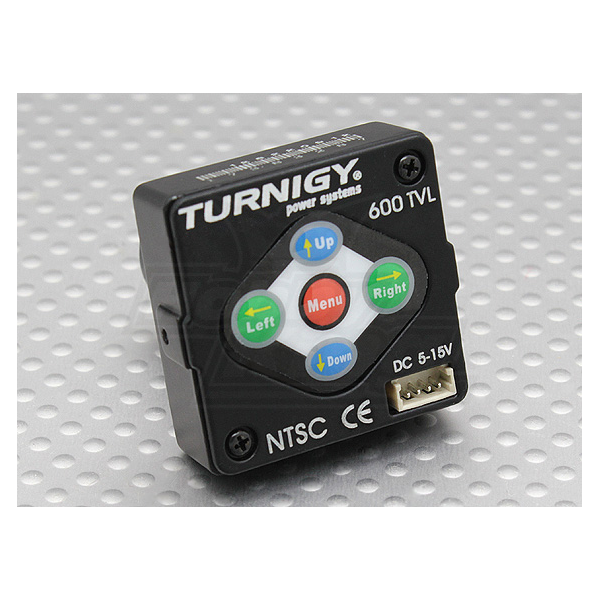

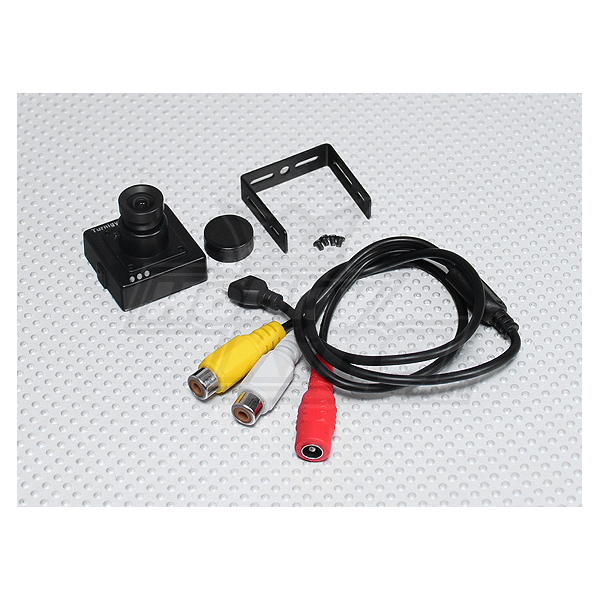

Micro FPV Camera 600TVL (NTSC)

Quick Overview

90,47 €

The Turnigy Micro FPV Camera uses the same high quality components and optics as our other leading brand FPV cameras. Now available in super sharp 600TVL resolution these cameras offer one of the most vivid FPV flying experiences available today.

Optional 2.1mm, 2.5mm and 2.8mm Lenses are sold separately, see related items below.

Camera Type: Colour NTSC
Scanning System (H): NTCS 15.734Khz
Scanning System (V): NTSC 59.94Hz
Pick Up Device: 1/3" Sony Super HAD CCD*
Pic Elements: 768(H) x 494(V)
Resolution: 600TV Lines
Min Illumination: 0.1 Lux / F2.0
White Bal: Auto (2,400k~8000k)
Lens: 3.6mm
Dimensions: 34x34mm
Weight: 31g
Voltage: DC5v~15V
Power: 130mA


OSD Programming cable coming soon.

"Super HAD CCD" is a trademark of Sony Corporation. The Super HAD CCD is a version of Sony's high performance CCD HAD (Hole-Accumulation Diode) sensor with sharply improved sensitivity by the incorporation of a new semiconductor technology developed by Sony Corporation.
