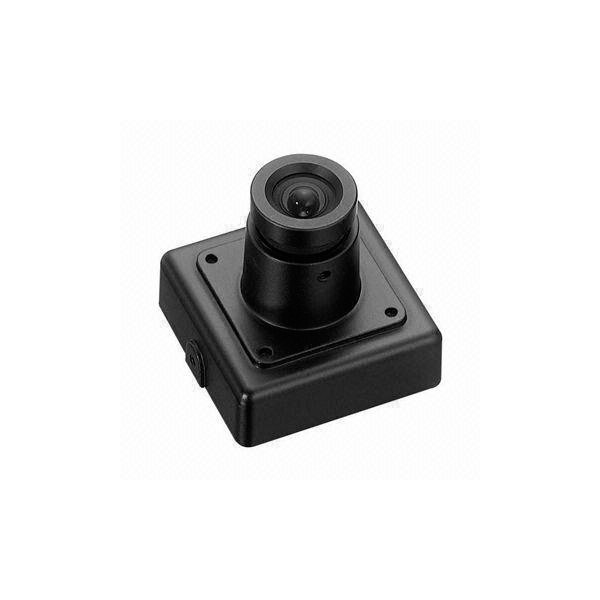

700TVL Miniature Square Camera SONY Effio P True WDR + OSD
Maximize
1.This camera CSYWDR3130CH applies the latest chip of SONY Effio-P (Effio Professional).
2. ONLY Effio-P has Ture WDR (Wide Dynamic Range).
3. The "Effio-P" (CXD4129GG) is a signal processing LSI for complementary color CCD cameras. It supports 960H and 760H CCD image sensors with wide dynamic range, achieving high visibility under backlight conditions and scenes with high contrast. This device incorporates both memory and microcontroller in the same package, which can realize various functions such as e-zoom, slow shutter, and other functions.
Features
·Supports 960H/760H CCD image sensor
·Horizontal resolution of over 650 TV-Line
·Wide dynamic range function
·ATR-EX (Adaptive Tone Reproduction)
·2D & 3D noise reduction
·Digital image stabilizer
·Motion detection
·Privacy mask
·HLC (High Light Compensation)
·OSD
·Slow shutter (Sens-up)
·E-zoom
·DRAM & flash memory inside
·Built-in MCU
·LFBGA package (12 mm×12 mm)
|
Specifications |
Value |
|
|
Total Pixel |
NTSC: 1020(H) X 596(V) |
PAL: 1020(H) X 596(V) |
|
Effective Pixel |
NTSC: 976(H) X 494(V) |
PAL: 976(H) X 582 (V) |
|
Inter H/V |
NTSC: 15,734/59.94Hz |
PAL: 15,625/50Hz |
|
LL H/V |
NTSC: 15,750/60Hz |
PAL: 15,625/50Hz |
|
Horizontal/Vertical Resolution |
700TV Lines |
|
|
Minimum Illumination (F1 2) |
Color: 0.1 Lux(501RE) / 0.02 Lux (151RE) BAN: 0.08Lux(501RE) / 0.002 Lux (151RE) |
|
|
S/N Ratio |
>52dB |
|
|
Lens |
3.6mm MTV lens (Wide angle lens, Pinhole lens, Vari-focal lens for option) |
|
|
Full OSD Functions |
Multi languages optional |
|
|
Day and Night |
Auto / Color / B/W |
|
|
ATW |
1800 - 10500K |
|
|
High Speed Shutter |
1/60(1/50) - lll0Ksec |
|
|
Flicker-less |
Off/On(External Optional) |
|
|
ATR (Adaptive Tone Reproduction) |
Off/ON (Luminance (L,M,H),Contrast (LML,M,MH,H)) |
|
|
AGO |
Level Setting |
|
|
AUTO iris |
DC Auto Iris |
|
|
MANUAL iris |
Off/On (Level Setting) |
|
|
Line Lock |
Off/On (Phase Control) |
|
|
Camera ID |
Off/On (Letters A to Z, Numerals O to 9, Symbols) |
|
|
White Balance |
ATWIPUSH/USER1/USER2/ANTI/ CR/MANUAL/PUSH LOCK |
|
|
Gammar |
0.45 |
|
|
Color Gain Control |
Level Setting |
|
|
Motion Detection |
4 Area (On/Off, Position, Sensitivity) |
|
|
Privacy Mask |
8 Area (On/Off, Color, Position) |
|
|
Sense up |
Auto x2 - Auto x512 |
|
|
Etc. Function |
Sharpness, Reverse(H) |
|
|
Alarm Output |
1 ea(Open Collector) |
|
|
Video Output |
VBS 1.0V p-p (75ohm Terminated) |
|
|
Power input |
DC 12V±10% |
|
|
Power Consumption |
Max 1.8W |
|
|
Size |
30x30mm |
|
