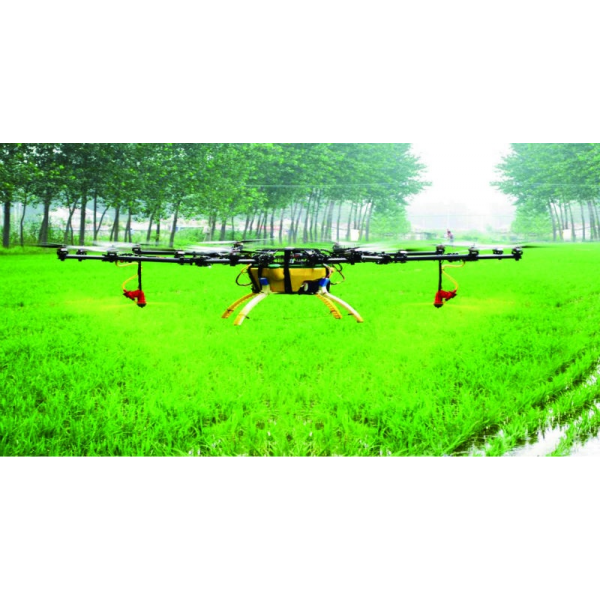

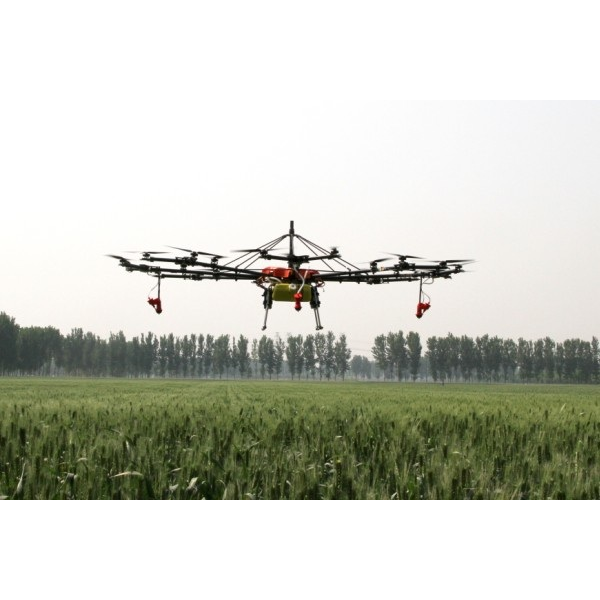

Spraying machine in manned WSZ-1805
- Remove this product from my favorite's list.
- Add this product to my list of favorites.
Introduction
1. Low noise. The unmaned hlicoter adoptsheulra-qiet brushlessmotor, copared with raditional brush motor, this kinds of motor is characterized with high energy conversion efficiency and low noise.
2. This unmanned heliopter can take-off and landing vertically in a narrow space, compared with the fixed wing aircraft , this model has the advantage of more flexible when flying.
3.Smart structure, tiny look and atucture, small but complete, easy to maintenace. The set of mini unmanned helicopter can be put into a small carrying case so that it is cnvnient to bacpack.
4.With the super power system it can flight more flexible in the strong wind. With the autonomous navgation and stability control system it can flight like a bird.
Specification:
Item | Parameter | Remark |
Spraying flow | 0.2-0.4L/min | Adopt mini submersible pump,stability of output flow,two nozzles spraying at the same time |
Droplet diameter | 50-100um | |
Flying speed | 0-10m/s | to ensure the spraying hight |
Spraying width | 3.5-5m | More flux and better atomizing |
Spraying speed | 0-4m/s Adjustable | it is better to keep at the speed of 2-4m/s |
Launch weight | =18kg | More lighter ,more stability and flexible |
Pesticide load | Rately 5kg. Actually 7Kg | Huge volume and long spraying time |
Flight time | 15-20 mins for one time | |
Control efficiency | 666-1332/min | |
Flight hight | 0-200m | Flight altitude fix any crops |
Spraying hight | Field operation 2-4m | |
Electrical machine | Brushless DC motor | Suitable for remote control and more stability |
Staring system | Wireless remote | Adopt wireless remote and speed stability |
The main rotor diameter | 18 Rotors(single diameter 430mm) | 18 rotors, 6 point positioning,take-off stable |
Flight press airflow | Outlet 13M/S,6M/S(after flighting 3 meters) | |
Total size | Unfold diameter 2450mm,hight 500mm | Huge framefor more flux |
Folding size | 450*500*750mm | Easy to transport |
Temperature range | -15°C-40°C | Various spraying environment |
Stability control system | 3 axis gyro,3axis acceleration,3 axis magnetic compass sensor,GPS Map,stability control system,barometric altimeter,remote video monitoring | |

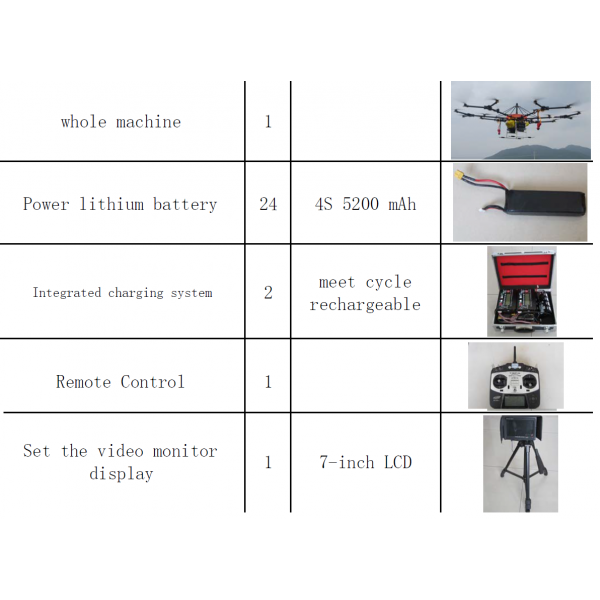

Power lithium battery 24 4S 5200 mAh
Integrantes charging system 2
meet cycle rechargeable
FUTABA T8FG
Remote Control 1
Set the video monitor 1 7-inch LCD display

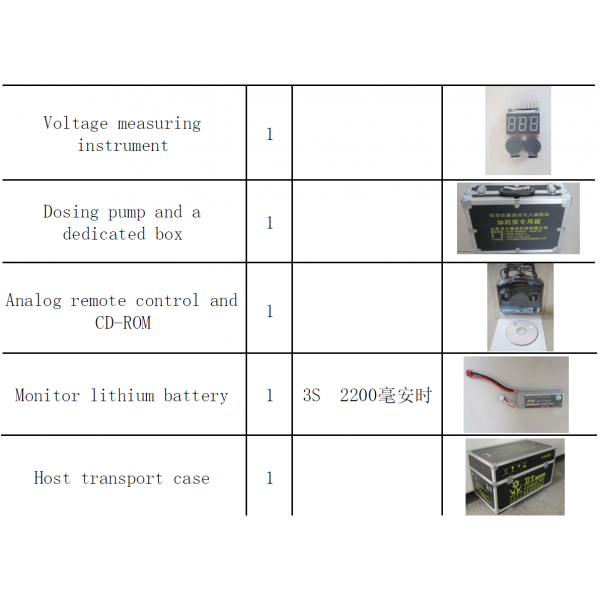

Voltage measuring 1 instrument
Dosing pump and a 1 dedicated box
Analog remote control and 1 CD-ROM
Monitor lithium battery
1 3S 2200
Host transport case 1

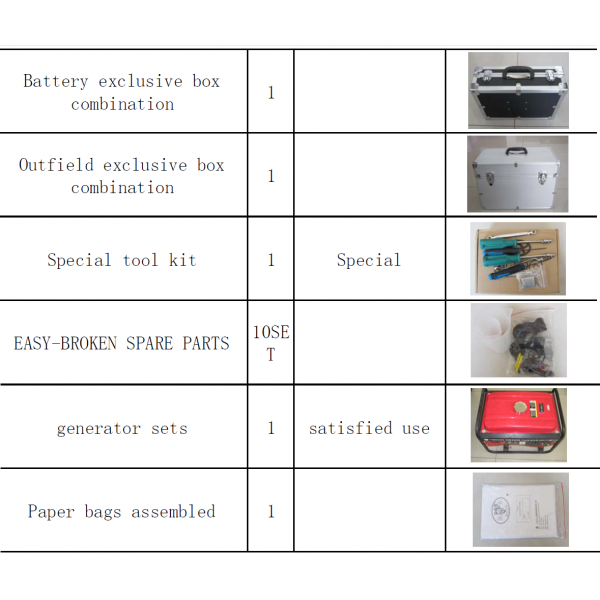

Battery exclusive box 1 combination
Outfield exclusive box 1 combination
Special tool kit
1 Special
EASY-BROKEN SPARE PARTS
10SE T
generator sets
1 satisfied use
Paper bags assembled 1
