2.4GHz 1000mW 12 canales Maximize

2.4GHz 1000mW 12 canales

Quick Overview

Wireless Audio Video Transmitter

More details

117,70 €

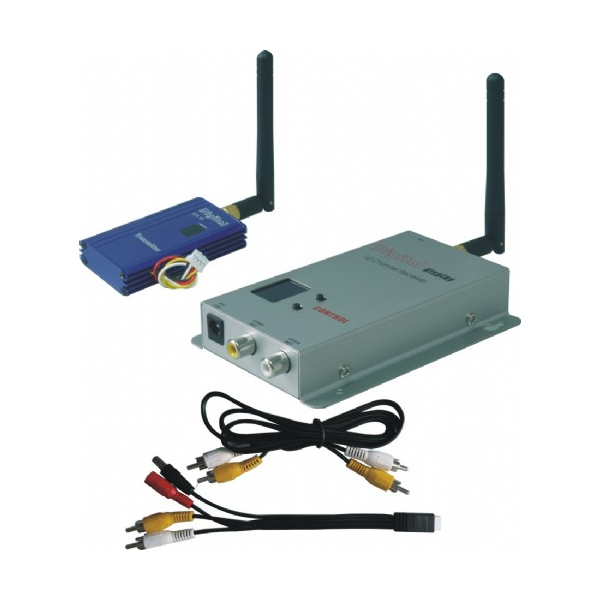

This is the long range wireless audio and video transmitter kits, with 12 channels availlable;

The transmission frequency is 2.2GHz, 2.3GHz, 2.4GHz;

This wireless transmitter and receiver are mainly used with CCTV cameras for long range wireless audio and video surveillance and security.

Transmitter Spec.:
Output Power:1000mW
Working Frequency/Channel: 2.2GHz/2.3GHz/2.4GHz ,12 channels
Output Voltage/Consumption Curren:12V/600mA
Audio/Video Output:1Vp-p(FM)
Audio Carrier Ware:5.5M or (6.0M customized)
Antenna: Omni-direction Antenna
Operation Temperature: -10 degrees C~+50 degrees C
Dimension/Weight:74*41*14mm /82g(TX)
Receiver Channel:12CH, AV Synchronization.
Transmission Distance: (Open/unobstructed Space) Min. 2000m

Receiver Spec.:
Voltage: DC7-12V
Output Current: 250mA
Audio/Video Output: 1Vp-p
Channel Amount: 12 channels
N.W.: 126g

Connect the transmitter with the audio and video equipment by A/V cable, turn on the power of the transmitter and receiver. It transfers the video and audio signals to another TV/monitor. It is mainly used for CCTV surveillance system, DVB-TV system,watching DVD disks and so on.
