2.4GHZ 1000mW Tx Rx & 1/3-inch CCD Camera *520 PAL

Quick Overview

121,97 €

12 Channel Tx/Rx video system with CCD camera.
The camera uses a quality glass lensed SONY CCD camera system & a powerful 1000mW tx.

*This version features 520-line PAL
Unlike other generic systems, we have produced a wiring loom and included it with the camera so that the Tx and camera will be compatible and on the same voltage.
If you buy your camera and Tx seperately the plug polarity and voltages may be very different.

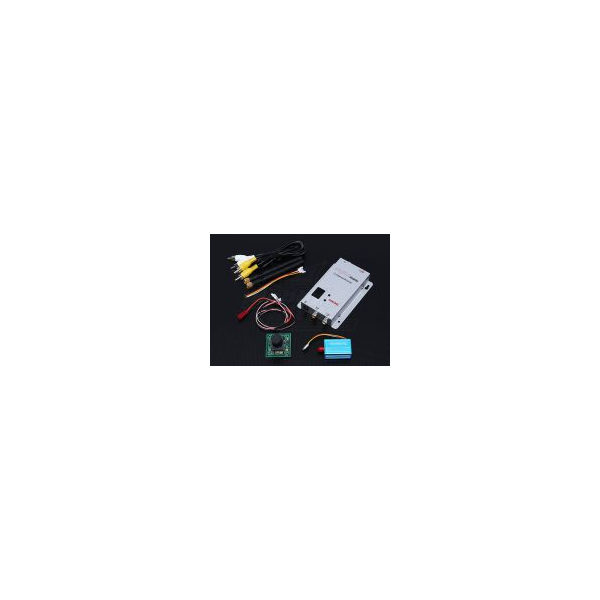

Included.
1 x SONY CCD 1/3inch Camera
1 x 2.4GHz 12 channel Video Transmitter (1000mW)
1 x 2.4GHz 12 channel Video Receiver
Camera spec.
CCD sensor type:1/3 color SONY CCD
Pixel;
NTSC: 510(H)*492(V)
PAL: 520(H)*582(V) (Included)
Scanning system: Interlaced scanning
Synchronization: System:Inter
Horizontal resolution: 420TV line
Minimum Illumination 0.01LUX/F1.2
DSP+CCD: CXD3142R+405AK
S/N Ratio: 48dB
Gamma Modification: 0.45
White balance: Auto
Auto backlight compensation: Auto
Lens: 3.6MM
Audio: No
Input voltage: 9~12.6V
Electric current 80MA
Electronic Shutter: 1/50 (60) ~ 1/100,000s
Video output: 1.0VP-P composite video
Operation Temp.: -20~50
Size: 38*38mm
Flight time: Approx 60min/100mah 3S

FPV Tx Spec.
Channel: 12-Ch, AV synchronization
Power: 1000mW
Input voltage: 8~12V
Weight: 85g
Size: 41x28x16mm
Channels: 2.2G/2.3G/2.4G
