900MHZ 1500mW Tx/Rx & 1/3-inch CCD Camera PAL 520TVL
- Remove this product from my favorite's list.
- Add this product to my list of favorites.
900MHZ 1500mW Tx/Rx & 1/3-inch CCD Camera PAL 520TVL
Maximize
12 Channel 900Mhz Tx/Rx video system with CCD camera.
A powerful 1.5W (1500mW) powered Tx!
Unlike other generic systems, we have produced a wiring loom and included it with the camera so that the Tx and camera will be compatible and on the same voltage.
If you buy your camera and Tx seperately the plug polarity and voltages may be very different.
If you buy your camera and Tx seperately the plug polarity and voltages may be very different.

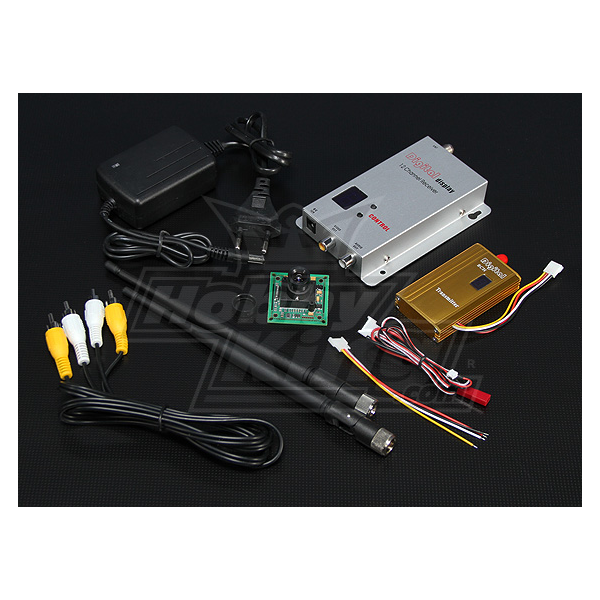

Included.
1 x SONY CCD 1/3inch Camera
1 x 900Mhz 8 channel Video Transmitter (1500mW)
1 x SONY CCD 1/3inch Camera
1 x 900Mhz 8 channel Video Transmitter (1500mW)
1 x 900Mhz 12 channel Video Receiver
Camera spec.
Image device: 1/3-inch Sony super HAD color CCD
Pixel: 752 x 582(PAL)
Synchronization: Internal synchronization
Horizontal resolution: 520TV Lines
Minimum Illumination: 0.1Lux/F1.2
S/N Ratio: Greater than 48dB(AGC OFF/B/W OFF)
White balance: Auto Tracking White Balance
Auto backlight compensation: On/OFF switchable
Lens: 3.6-6mm
Input voltage: DC12V
Electric current: 80MA±5MA
Electronic Shutter: Auto
PAL: 1/50 to 1/100,000 seconds
Video output: 1.0Vp~p75O
Operation Temp.: -10~+50
Size: 38 x 38mm
Power supply: 12V/150mA
Pixel: 752 x 582(PAL)
Synchronization: Internal synchronization
Horizontal resolution: 520TV Lines
Minimum Illumination: 0.1Lux/F1.2
S/N Ratio: Greater than 48dB(AGC OFF/B/W OFF)
White balance: Auto Tracking White Balance
Auto backlight compensation: On/OFF switchable
Lens: 3.6-6mm
Input voltage: DC12V
Electric current: 80MA±5MA
Electronic Shutter: Auto
PAL: 1/50 to 1/100,000 seconds
Video output: 1.0Vp~p75O
Operation Temp.: -10~+50
Size: 38 x 38mm
Power supply: 12V/150mA
FPV Tx Spec.
Channel: 8-Ch, AV synchronization
Channel: 8-Ch, AV synchronization
Power: 1500mW
Input voltage: 12V
Weight: 18g
Input voltage: 12V
Weight: 18g
Size: 73x41x14mm
Frequency: 0.9G 0.910G,0.980G,1.010G,1.040G
Frequency: 0.9G 0.910G,0.980G,1.010G,1.040G
